Complex Signals Planning Guide

Check for Multiple Downstream Masts

In complex rail networks, it may be necessary to evaluate the speeds of two or more downstream masts before setting the aspect of the current mast. This approach ensures safety and operational efficiency in scenarios with high train density, intricate track layouts, or varying speed requirements.

Downstream signals are ahead of the train in its direction of travel, while upstream signals are behind it.

Complex Signaling Examples

Here are a few situations where such an approach would be necessary:

1. Approaching Junctions or Interlockings

When a train approaches a junction or an interlocking area with multiple possible routes, it may be necessary to consider the speeds allowed on the routes beyond the immediate next signal. This ensures that the train can safely proceed through the junction and continue at an appropriate speed for the conditions that will be encountered further ahead.

2. Graduated Speed Reduction

In situations where there’s a need for a graduated speed reduction—perhaps due to a gradient, curve, or approaching a congested station area—checking two downstream masts allows for a smoother transition. The current mast can display an aspect that prepares the train for the speed restrictions that will come into effect not just at the next signal but the one after that, facilitating a gradual deceleration.

3. Overlapping Signal Blocks for Added Safety

In dense rail corridors or high-speed sections, there might be overlapping signal blocks where the conditions of two downstream blocks affect the current signal aspect. This is to provide an additional safety margin by ensuring that a train has sufficient warning and space to stop or slow down, even if a problem is detected two blocks ahead.

4. Divergent Routes with Different Speed Profiles

When divergent routes from a signal have significantly different speed profiles—such as one route leading to a high-speed line and another leading to a slow-speed yard—checking two downstream masts helps in setting the current aspect. This approach ensures that the train is not only warned about the immediate next signal but also about the speed expectations of the route it will be taking thereafter.

5. Pre-emptive Signaling for Special Operations

In cases where special operations are in effect, such as track maintenance, construction work, or emergency situations, the signaling system may need to incorporate conditions from further down the line to preemptively adjust train speeds. This can involve taking into account the aspects of two downstream masts to set the current mast’s aspect accordingly, ensuring trains are at the correct speed for upcoming restrictions.

Complex Signaling Planning

Once it’s determined a complex signaling configuration involving aspects of 2 (or more) downstream masts need to be checked before setting the aspect of a current mast, the process revolves around a common set of logics and checks. These foundational principles ensure the system’s consistency, safety, and efficiency. Let’s outline how this typically works in practice:

Identify Primary Conditions: The first step involves identifying the key conditions that influence the current signal aspect. This includes the statuses (aspects) of the two downstream masts and may also involve track occupancy, switch positions, and any special operational conditions.
Define Conditional Hierarchy: Given multiple inputs, it’s crucial to define the hierarchy of conditions. This often starts with the most restrictive condition to ensure safety. For instance, if either downstream mast shows a ‘Stop’ aspect, this might override other less restrictive conditions.
Implement ‘If-Then-Else’ Logic: The core logic is implemented using ‘if-then-else’ statements. For example:
- If the first downstream mast is at ‘Stop’, then set the current mast to ‘Approach’ or another appropriate restrictive aspect.
- Else if the second downstream mast is at ‘Stop’ and the first is at ‘Clear’, then consider setting the current mast to ‘Approach Medium’ or a similarly moderated aspect, reflecting the need to slow down but not stop immediately.
- Else, if both downstream masts are ‘Clear’, set the current mast to ‘Clear’ under conditions that all other safety checks (track occupancy, etc.) are satisfied.
Incorporate Exit and Continue Logic: Within each logic group, decisions on whether to exit the logic chain or continue to the next check are made. This ensures that once a determinative condition is met, the system either sets the aspect accordingly or continues to evaluate further conditions if no definitive action is determined.
Speed Gradation Logic: Based on the downstream conditions, the logic may need to apply speed gradation, gradually reducing speed based on the distance and expected stopping or slowing points.
Divergence and Convergence Logic: Special considerations are made where tracks diverge or converge, checking the aspects of signals that govern entry into and exit from these track configurations.
Emergency and Special Operation Conditions: Incorporate logic to handle emergency conditions or special operational states, such as maintenance work, which may override standard signaling logic.
Feedback Loops: Implement feedback loops for dynamic adjustment. For example, if a train’s speed or the status of a downstream mast changes, the system can adjust the current mast’s aspect in real-time or near-real-time to reflect new conditions.

Setting Aspects Using Block Status

For users configuring signals without track circuits, signal aspects are determined by evaluating the occupancy status of at least two downstream blocks. This ensures the upstream mast aspect reflects the safest and most appropriate condition for train operations.

Key Characteristics:

Block Occupancy-Based:
- The upstream mast aspect is set based on whether the first and second downstream blocks are occupied or clear.
Progressive Restriction:
- Aspects become progressively less restrictive as downstream blocks clear.
Applicability:
- This approach is suitable for systems where speed reporting is unavailable or unnecessary.

3-Aspect ”Block Signaling” Configuration Using Block Occupancy Detection

A 3-Aspect signal using block status can be managed by checking two downstream blocks. Use a single logic group with 2 logic statements, where the last statement determines one of two possible aspects (Advance or Clear).

Logic Statement	Downstream Block 1	Downstream Block 2	Upstream Mast Aspect	Logic Statement
1	Occupied	-	Stop	1. If `Downstream Block 1` is `Occupied`, Then Set `Upstream Mast Aspect` to `Stop` and Exit. Else `Continue`.
2	Clear	Occupied	Approach or Clear	2. If `Downstream Block 2` is `Occupied`, Then Set `Upstream Mast Aspect` to `Approach` and Exit. Else Set `Upstream Mast Aspect` to `Clear` and Exit.

5-Aspect “Gradient Speed Reduction” Configuration Using Blocks Occupancy Detection

A 5-Aspect signal using block status refines this logic further by differentiating additional aspects such as Approach Medium and Advance Clear. Use a single logic group with 4 logic statements, where the last statement determines one of two possible aspects (Advance Clear or Clear).

Logic Statement	Downstream Block 1	Downstream Block 2	Downstream Block 3	Upstream Mast Aspect	Logic Statement
1	Occupied	-	-	Stop	If `Downstream Block 1` is `Occupied`, Then Set `Upstream Mast Aspect` to `Stop` and Exit. Else `Continue`.
2	Clear	Occupied	-	Approach	If `Downstream Block 2` is `Occupied`, Then Set `Upstream Mast Aspect` to `Approach` and Exit. Else `Continue`.
3	Clear	Clear	Occupied	Approach Medium	If `Downstream Block 3` is `Occupied`, Then Set `Upstream Mast Aspect` to `Approach Medium` and Exit. Else `Continue`.
4	Clear	Clear	Clear	Advance Clear or Clear	If `Downstream Block 3` is `Clear`, Then Set `Upstream Mast Aspect` to `Advance Clear` and Exit. Else Set `Upstream Mast Aspect` to `Clear` and Exit.

3-Aspect Configuration for Using Block Occupancy And Point Status

This configuration uses block status and turnout points to determine the aspects of the signal mast for both the mainline and the divergent route. The turnout determines which route is active, and the corresponding signal head governs train movement.

In the following example, the Mast before the turnout has 2 heads, one the mainline route and one for the divergent route. This can be configured using 2 separate logic blocks, one for each head.

Mainline Route: 3-Aspect Signal Head

Logic Statement	Turnout Block	Point Position	Mainline Block 1	Mainline Block 2	Mainline Head Aspect	Logic Statement
1	Occupied	Open/Thrown	-	-	Stop	If `Points` are `Open/Thrown` Or `Turnout Block` is `Occupied`, Then Set `Mainline Head` to `Stop` and Exit. Else `Continue`.
2	Clear	Closed	Occupied	-	Stop	If `Mainline Block 1` is `Occupied`, Then Set `Mainline Head` to `Stop` and Exit. Else `Continue`.
3	Clear	Closed	Clear	Occupied / Clear	Approach / Clear	If `Mainline Block 2` is `Occupied`, Then Set `Mainline Head` to `Approach` and Exit. Else Set `Mainline Head` to `Clear` and Exit.

Divergent Route: 3-Aspect Signal Head

Logic Statement	Turnout Block	Point Position	Divergent Block 1	Divergent Block 2	Divergent Head Aspect	Logic Statement
1	Occupied	Closed	-	-	Stop	If `Points` are `Closed` Or `Turnout Block` is `Occupied`, Then Set `Divergent Head` to `Stop` and Exit. Else `Continue`.
2	Clear	Open/Thrown	Occupied	-	Stop	If `Divergent Block 1` is `Occupied`, Then Set `Divergent Head` to `Stop` and Exit. Else `Continue`.
3	Clear	Open/Thrown	Clear	Occupied / Clear	Approach / Clear	If `Divergent Block 2` is `Occupied`, Then Set `Divergent Head` to `Approach` and Exit. Else Set `Divergent Head` to `Clear` and Exit.

###

Setting Aspects Using Track Circuits

Signal aspects are critical for ensuring safe train operations by providing advanced warnings to train crews about track conditions. The logic for setting signal aspects leverages track circuits, which report the aspect (speed) of the downstream mast. This information determines how the current signal should behave.

1 downstream mast is sufficient for 3-aspect signals (e.g., Stop, Approach, Clear) because the downstream mast conveys speed restrictions for the block beyond it.
1 downstream mast is also sufficient for 5-aspect signals (e.g., Stop, Approach, Approach Medium, Advance Clear, Clear) when track circuits are used. The downstream mast reports speeds for multiple blocks, allowing the current signal to adjust based on the most restrictive condition downstream. The upstream mast’s block speed is simply set to a lower speed than the next downstream block as reported by the downstream mast.

By utilizing track circuits, the signaling system simplifies decision-making, ensuring that upstream signals dynamically respond to downstream conditions for both safety and operational efficiency.

3-Aspect ”Block Signaling” Configuration Using Track Circuits

A 3-Aspect signal can be managed by checking 1 downstream block and mast. Use a single logic group with 2 logic statements, where the last statement determines one of two possible aspects (`Approach` or `Clear`).

Logic Statement	Downstream Block	Downstream Mast Aspect	Upstream Mast Aspect	Logic Statement
1	Occupied	-	Stop	If `Downstream Block` is `Occupied`, Then Set `Upstream Mast Aspect` aspect to `Stop` and `Exit`, Else `Continue`
2	Clear	Stop or Approach	Approach or Clear	If `Downstream Mast Aspect` is `Stop`, Then `Upstream Mast Aspect` aspect to `Approach`, and `Exit`. Else Set to `Upstream Mast Aspect` to `Clear` and `Exit`

**5-Aspect “Gradient Speed Reduction” Configuration Using Track Circuits

A 5-Aspect signal can be managed by checking the Downstream Block and a single Downstream Mast. Use a single logic group with 4 logic statements, where the last statement determines one of two possible aspects (Advance Clear or Clear).

Logic Statement	Downstream Block	Downstream Mast Aspect	Upstream Mast Aspect	Logic Statement
1	Occupied	-	Stop	1. If `Downstream Block` is `Occupied`, Then Set `Upstream Mast Aspect` to `Stop` and Exit. Else `Continue`.
2	Clear	Stop	Approach	2. If `Downstream Mast Aspect` is `Stop`, Then Set `Upstream Mast Aspect` to `Approach` and Exit.
3	Clear	Approach	Approach Medium	3. If `Downstream Mast Aspect` is `Approach`, Then Set `Upstream Mast Aspect` to `Approach Medium` and Exit.
4	Clear	Approach Medium or Clear	Advance-Clear or Clear	4. If `Downstream Mast Aspect` is `Approach Medium`, Then Set `Upstream Mast Aspect` to `Advance-Clear` and Exit. Else Set `Upstream Mast Aspect` to `Clear` and Exit.

General Recommendations

When configuring aspects, always ensure the Track Circuit Link Event ID is correctly associated with downstream masts.
For complex logic involving more than five aspects, consider using additional downstream masts or refining conditions to handle unique scenarios.

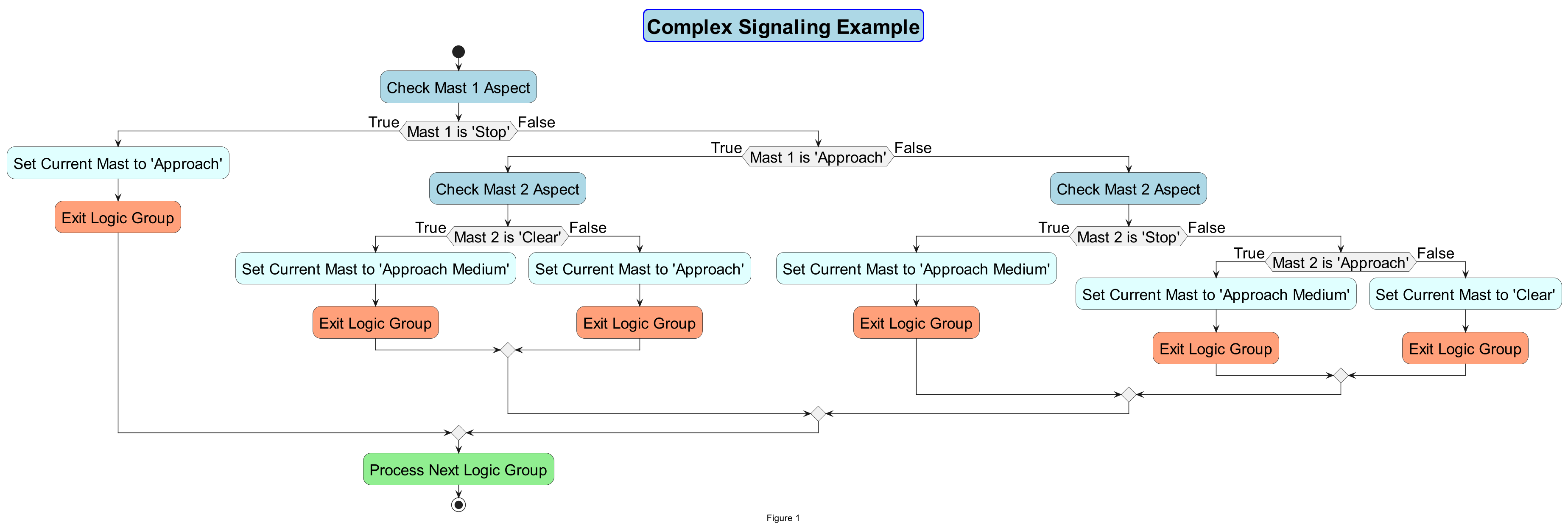

“After thoroughly examining the table of logic statements and their corresponding conditionals and actions, we now present a comprehensive flow diagram. This diagram serves as a visual representation of the logic flow dictated by the conditions and actions detailed in the preceding table. Each conditional check and subsequent action, as described in our logic statements, is illustrated to provide a clearer understanding of how each signal aspect is determined based on the states of two downstream masts.

The flow diagram is structured to mirror the sequential processing of the logic statements, beginning with the initial condition check of Mast 1’s aspect and progressing through the various potential outcomes and actions. By following the diagram, readers can visually trace the decision-making path for setting the current signal mast’s aspect, offering an intuitive grasp of the process that complements the tabular data.

Key Features of the Diagram:

Conditional Decision Points: Illustrated as branching paths, these points reflect the ‘if-then-else’ structure of our logic statements, guiding the flow based on the conditions met.
Action Nodes: Represent the actions taken when specific conditions are satisfied, such as setting the signal aspect to ‘Approach’, ‘Approach Medium’, or ‘Clear’.
Flow Direction: Indicates the sequential order of logic evaluation, demonstrating how an initial condition can lead to various outcomes based on the downstream mast aspects.
Highlighting Key Transitions: Through the use of color or other visual markers, key transitions and critical decision points are emphasized to aid in navigation and understanding.

This diagram not only aids in visualizing the operational logic behind signal aspect setting but also serves as a practical reference for those configuring or troubleshooting signal systems. By aligning the visual flow with the logic statements covered earlier, we aim to provide a dual-perspective understanding—both textual and visual—of the intricate decision-making process involved in railway signaling.”
