Version of the AudioConfiguredConsumer that can handle many GPIO audio pins with two events each. More...

#include <AudioConfiguredConsumer.h>

Inheritance diagram for AudioConfiguredConsumer:

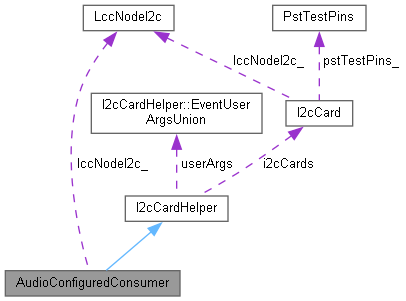

Collaboration diagram for AudioConfiguredConsumer:

[legend]

Public Types
typedef AudioCardConfig	CardConfig_type

typedef AudioMessageGroupConfig	MessageGroupConfig_type

Public Member Functions
template<unsigned NUM_CARDS>
	AudioConfiguredConsumer (openlcb::Node *pNode, const openlcb::RepeatedGroup< CardConfig_type, NUM_CARDS > &configOffset, EventDeviceTypes eventDeviceType) __attribute__((noinline))
	Construct an AudioConfiguredConsumer helper. More...

UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done) OVERRIDE
	Invoked on initial load of CDI and when CDI is udpated. Register configured events with OpenMRN. More...

void	factory_reset (int fd) OVERRIDE

bool	ensureUniqueI2cOffset (uint8_t cardIndex, uint8_t bus, uint8_t offset)

Public Attributes
union I2cCardHelper::EventUserArgsUnion	userArgs

Protected Member Functions
void	drive_pin_ext (uint8_t cardIndex, uint8_t pin, bool, uint8_t intArg) override

void	_do_unregister ()
	Unregisters this event handler from the global registry.

void	handle_identify_consumer (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE
	Process request to identify produced events.

void	handle_identify_producer (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE
	Process request to identify produced events.

virtual void	SendEventIdentified (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done)
	Sends Producer- or Consumer-Identified for `registry_entry`. More...

void	applyI2cInfo (int fd, uint8_t cardIndex, i2cInfoConfig_type cfgI2cInfoRef)
	sets up the MCP card's I2C connection using the user provided (CDI) configuration information (bus and address offset) More...

void	resetCardInfo (int fd, cardInfoConfig_type cfgI2cInfoRef)
	resets the card configuration information (description field). More...

void	resetI2cInfo (int fd, i2cInfoConfig_type cfgI2cInfoRef)
	resets the card's I2C configuration information (bus and address fields). More...

virtual void	drive_pin (uint8_t card, uint8_t pin, bool set)

EventUserArgsUnion	unpack_user_args (const openlcb::EventRegistryEntry &re) const
	Small helper to unpack our 4-byte user_arg payload from the registry entry.

void	handle_event_report (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE

Private Member Functions
void	_initI2cCards (bool isProducer)
	Initializes the array of I2C card objects using the configured card type. More...

Private Attributes
std::string	cfgMessage [NUM_AUDIO_CARDS][NUM_AUDIO_MESSAGES_PER_CARD]
	Object for I2C connection to Audio cards.

Detailed Description

Version of the AudioConfiguredConsumer that can handle many GPIO audio pins with two events each.

Note: Typically used to support a HW Audio card.

Definition at line 86 of file AudioConfiguredConsumer.h.

Member Typedef Documentation

◆ CardConfig_type

typedef AudioCardConfig AudioConfiguredConsumer::CardConfig_type

Type for the audio card CDI configuration entry

Definition at line 90 of file AudioConfiguredConsumer.h.

◆ MessageGroupConfig_type

typedef AudioMessageGroupConfig AudioConfiguredConsumer::MessageGroupConfig_type

Type for the message group CDI configuration entry

Definition at line 91 of file AudioConfiguredConsumer.h.

Constructor & Destructor Documentation

◆ AudioConfiguredConsumer()

template<unsigned NUM_CARDS>

AudioConfiguredConsumer::AudioConfiguredConsumer	(	openlcb::Node *	pNode,
		const openlcb::RepeatedGroup< CardConfig_type, NUM_CARDS > &	configOffset,
		EventDeviceTypes	eventDeviceType
	)

inline

Construct an AudioConfiguredConsumer helper.

Initializes the I2C card helper for the configured number of Audio Cards and binds the OpenLCB node and configuration segment that maps events to audio messages.

Template Parameters

NUM_CARDS Number of Audio Cards defined in the CDI segment.

Parameters

pNode	OpenLCB node object from the stack.
configOffset	Repeated group from the configuration space that represents the locations of the events.
eventDeviceType	Type of event device (used for logging).

Usage: AudioConfiguredConsumer<NUM_CARDS> audioConfiguredConsumerObject(

lccNode.node(),

cfg.audioCardsSeg().audioCardConfig(),

EventDeviceTypes::AudioCard);

AudioConfiguredConsumer
Version of the AudioConfiguredConsumer that can handle many GPIO audio pins with two events each.
Definition: AudioConfiguredConsumer.h:88

LccNode::node
openlcb::Node * node()
node() returns a pointer to the NODE object within memory
Definition: LccNode.h:204

lccNode
LccNode lccNode(COMM_TYPES::CAN_TWAI|COMM_TYPES::CAN_SLCAN_SERIAL_BRIDGE)
instantiates all consumer and producers

Definition at line 114 of file AudioConfiguredConsumer.h.

Member Function Documentation

◆ _initI2cCards()

void I2cCardHelper::_initI2cCards ( bool isProducer )

inlineprivateinherited

Initializes the array of I2C card objects using the configured card type.

Allocates and initializes each I2C card in the array to the type specified by the cardType_ member. If isProducer is true, registers each card's polling callback.

Parameters

isProducer True if the card is used as a producer and requires polling.

Definition at line 460 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ apply_configuration()

UpdateAction AudioConfiguredConsumer::apply_configuration	(	int	fd,
		bool	initial_load,
		BarrierNotifiable *	done
	)

inline

Invoked on initial load of CDI and when CDI is udpated. Register configured events with OpenMRN.

Parameters

fd	file descriptor used to access CDI data
initial_load	is true when CDI is loaded after a reboot
done

Definition at line 139 of file AudioConfiguredConsumer.h.

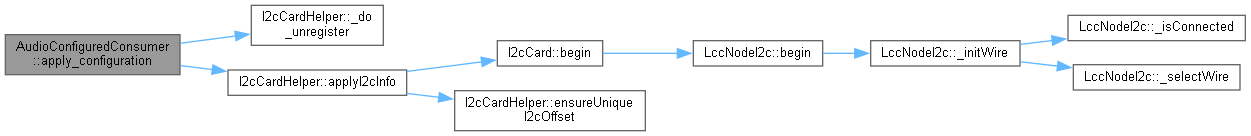

Here is the call graph for this function:

◆ applyI2cInfo()

void I2cCardHelper::applyI2cInfo	(	int	fd,
		uint8_t	cardIndex,
		i2cInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

sets up the MCP card's I2C connection using the user provided (CDI) configuration information (bus and address offset)

Note

producer/consumers apply_configuration() callback invoke this method to initialize the I2C / MCP connection information for the card

all I2C connected cards have CDI section for user provided bus and address information (which must match the settings of the I2C enabeled card)

HOOK: Typical call site is within your apply_configuration() loop:

read bus & offset from CDI
initialize the corresponding i2cCards[cardIndex]

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cardIndex	specifies which card the configuration is for. Used to update the i2cCards[] array and initialize the connection
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration for the MCP card

Definition at line 295 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drive_pin()

virtual void I2cCardHelper::drive_pin	(	uint8_t	card,
		uint8_t	pin,
		bool	set
	)

inlineprotectedvirtualinherited

Hook for consumers: drive one output pin (simple case). Default does nothing; simple consumers override this.

Parameters

card	card index (as stored in user_arg)
pin	pin index (as stored in user_arg)
set	desired logical state from the event semantics (SET/ON = true, CLR/OFF = false)

Reimplemented in IoConfiguredPC, OutputConfiguredConsumer, ServoConfiguredConsumer, TurnoutConfiguredPC, and NeoPixelConfiguredConsumer.

Definition at line 392 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ drive_pin_ext()

void AudioConfiguredConsumer::drive_pin_ext	(	uint8_t	card,
		uint8_t	pin,
		bool	set,
		uint8_t	intArg
	)

inlineoverrideprotectedvirtual

Extended hook for consumers that also need the CDI intArg (e.g., audio message index). Default forwards to drive_pin(...) so existing consumers remain unchanged.

Reimplemented from I2cCardHelper.

Definition at line 200 of file AudioConfiguredConsumer.h.

◆ ensureUniqueI2cOffset()

bool I2cCardHelper::ensureUniqueI2cOffset	(	uint8_t	cardIndex,
		uint8_t	bus,
		uint8_t	offset
	)

inlineinherited

Check for duplicate offsets on the same I2C bus. Automatically resets the tracker on the first call per config pass.

Remarks: Call this once per card during your apply_configuration loop, with the CDI values.

Parameters

cardIndex	Index of the card in the config loop.
bus	I2C bus number (0 or 1).
offset	I2C offset (0–7).

Returns: true if this (bus, offset) was already claimed.

Definition at line 183 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ factory_reset()

void AudioConfiguredConsumer::factory_reset ( int fd )

inline

Reset CDI configuration entries to their initial (default) values

Parameters

fd	used to access the CDI information in the file system

Definition at line 173 of file AudioConfiguredConsumer.h.

Here is the call graph for this function:

◆ handle_event_report()

void I2cCardHelper::handle_event_report	(	const openlcb::EventRegistryEntry &	registry_entry,
		openlcb::EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprotectedinherited

Default consumer handler: maps an incoming Event Report to (card,pin,set,intArg) and calls drive_pin_ext(...). Producers are ignored.

Definition at line 418 of file I2cCardHelper.h.

Here is the call graph for this function:

◆ resetCardInfo()

void I2cCardHelper::resetCardInfo	(	int	fd,
		cardInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

resets the card configuration information (description field).

Note: invoke from the consumer/producer factory_reset() to reset the card configuration

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration block for the card's info (description, etc)

Definition at line 309 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ resetI2cInfo()

void I2cCardHelper::resetI2cInfo	(	int	fd,
		i2cInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

resets the card's I2C configuration information (bus and address fields).

Note: invoke from the consumer/producer factory_reset() to reset the card configuration

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration for card's I2C info (bus/offset)

Definition at line 321 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ SendEventIdentified()

virtual void I2cCardHelper::SendEventIdentified	(	const openlcb::EventRegistryEntry &	registry_entry,
		openlcb::EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprotectedvirtualinherited

Sends Producer- or Consumer-Identified for registry_entry.

Identification type is inferred from the registry entry’s packed user args (see

See also: isProducer). Override to customize the MTI or payload.

Reimplemented in TurnoutConfiguredPC.

Definition at line 273 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ userArgs

union I2cCardHelper::EventUserArgsUnion I2cCardHelper::userArgs

inherited

event arguments

The documentation for this class was generated from the following file:

Node_Card/AudioConfiguredConsumer.h
