BsdSensor Class Reference

Encapsulates one BSD channel (sense + decision + actuation). More...

#include <BsdSensor.h>

Public Member Functions
	BsdSensor (uint8_t index, int sensePin, int gatePin)
	Construct a sensor. More...
void	begin (BsdRelay *pRelay)
	Initialize hardware and internal state. More...
void	update (uint16_t occLow_mA, uint16_t occHigh_mA)
	Advance the sensor state machine and measurements. More...
SensorState	state () const
	Current state of the channel.
bool	isShorted () const
	Returns true when the channel is tripped or lockout (rail disconnected).
bool	isOccupied () const
	Returns true when filtered current exceeds occLow_mA.
float	currentA () const
	Returns the filtered current estimate in Amps (if ADC_REF_V / ACS_SENS are in SI).
void	setState (SensorState s)
	Set the channel state and actuate outputs accordingly. More...
void	setOccupied (bool occ)
	Override the occupancy flag (primarily for tests).
void	reset ()
	Clear a fault and return to OK (power path enabled, inrush blanking starts).

Private Member Functions
bool	_inInrush (uint32_t now) const
	True while still in the inrush blanking window. More...
float	_readCurrentA () const
	Sample ADC three times, average, convert to volts and then Amps. More...

Private Attributes
BsdRelay *	pRelay_ = nullptr
	Optional relay driver attached via. More...
uint16_t	occHigh_mA = 0
	Last trip threshold passed to update (see note below).
uint8_t	idx_ = 0
	Channel index (informational).
int	sensePin_ = -1
	ADC1 input pin for current sense.
int	gatePin_ = -1
	MOSFET gate output (HIGH=ON).
float	current_filtered_A_ = 0.0f
	IIR filtered current (Amps).
uint8_t	retry_stage_ = 0
	0..RETRY_MAX-1 retry stage.
uint32_t	last_sample_ms_ = 0
	Last sample timestamp.
uint32_t	unblank_at_ms_ = 0
	Timestamp when inrush blanking ENDS.
uint32_t	next_retry_ms_ = 0
	Next retry timestamp.
bool	isOccupied_ = false
	Occupancy flag (spelling kept for compatibility).

Detailed Description

Encapsulates one BSD channel (sense + decision + actuation).

Typical lifecycle:

1. Construct with channel index, sense pin (ADC1), and gate pin.
2. Call begin once at startup.
3. Call update repeatedly (e.g., from loop), passing the short trip threshold.
4. Read isOccupied and isShorted for host-visible status.

Definition at line 73 of file BsdSensor.h.

Constructor & Destructor Documentation

BsdSensor()

BsdSensor::BsdSensor ( uint8_t  index, int  sensePin, int  gatePin  )

inline

Construct a sensor.

Parameters

index	Channel index (0..7); informational only.
sensePin	ADC1 pin connected to the current sensor output.
gatePin	Digital output pin that drives the MOSFET gate (HIGH=ON).

Definition at line 81 of file BsdSensor.h.

Member Function Documentation

_inInrush()

bool BsdSensor::_inInrush ( uint32_t  now ) const

inlineprivate

True while still in the inrush blanking window.

Parameters

now	Current millis() value.

Definition at line 262 of file BsdSensor.h.

Here is the caller graph for this function:

_readCurrentA()

float BsdSensor::_readCurrentA ( ) const

inlineprivate

Sample ADC three times, average, convert to volts and then Amps.

Returns

Absolute current in Amps (assumes midpoint ADC_REF_V/2 and sensitivity ACS_SENS).

Definition at line 270 of file BsdSensor.h.

Here is the caller graph for this function:

begin()

void BsdSensor::begin ( BsdRelay *  pRelay )

inline

Initialize hardware and internal state.

Sets gate pin as OUTPUT, initializes state to SensorState OK, zeros filters and timers, and applies an initial inrush blanking window.

Note

If you are not attaching a BsdRelay.h, ensure the gate pin is driven HIGH somewhere (e.g., call setState(SensorState OK)) to connect the rail at power-up.

Parameters

pRelay

Pointer to a BsdRelay.h for this channel (or nullptr to detach).

Definition at line 95 of file BsdSensor.h.

Here is the call graph for this function:

Here is the caller graph for this function:

setState()

void BsdSensor::setState ( SensorState  s )

inline

Set the channel state and actuate outputs accordingly.

When moving to SensorState OK, the power path is enabled and a new inrush blanking window is started. When moving to TRIPPED/LOCKOUT, the power path is disabled and occupancy is cleared.

Parameters

s	Desired state.

Definition at line 194 of file BsdSensor.h.

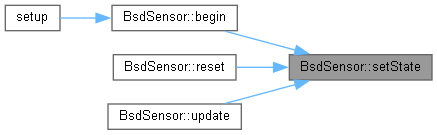

Here is the caller graph for this function:

update()

void BsdSensor::update ( uint16_t  occLow_mA, uint16_t  occHigh_mA  )

inline

Advance the sensor state machine and measurements.

Samples current, updates filters, updates occupancy, and manages short/overcurrent detection and retry/lockout behavior.

Parameters

occLow_mA	Lower threshold for occupancy detection (below this is unoccupied)
occHigh_mA	High threshold for occupancy detection (above this is a short)

Note

Enforces a minimum sample cadence of SAMPLE_PERIOD_MS.

Definition at line 116 of file BsdSensor.h.

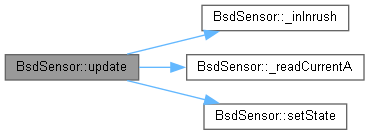

Here is the call graph for this function:

Member Data Documentation

pRelay_

BsdRelay* BsdSensor::pRelay_ = nullptr

private

Optional relay driver attached via.

See also

attachRelay().

Definition at line 224 of file BsdSensor.h.

---

The documentation for this class was generated from the following file:

• BSD_Card/BsdSensor.h
