Class for interacting with DFPlayerMini MP3 player. More...

#include <DFPlayerMini_Fast.h>

Collaboration diagram for DFPlayerMini_Fast:

Classes
struct	stack

Public Member Functions
bool	begin (Stream &stream, bool debug=false, unsigned long threshold=100)
	Configure the class. More...

void	playNext ()
	Play the next song in chronological order.

void	playPrevious ()
	Play the previous song in chronological order.

void	play (uint16_t trackNum)
	Play a specific track. More...

void	stop ()
	Stop the current playback.

void	playFromMP3Folder (uint16_t trackNum)
	Play a specific track in the folder named "MP3". More...

void	playAdvertisement (uint16_t trackNum)
	Interrupt the current track with a new track. More...

void	stopAdvertisement ()
	Stop the interrupting track.

void	incVolume ()
	Increment the volume by 1 out of 30.

void	decVolume ()
	Decrement the volume by 1 out of 30.

void	volume (uint8_t volume)
	Set the volume to a specific value out of 30. More...

void	EQSelect (uint8_t setting)
	Set the EQ mode. More...

void	loop (uint16_t trackNum)
	Loop a specific track. More...

void	playbackSource (uint8_t source)
	Specify the playback source. More...

void	standbyMode ()
	Put the MP3 player in standby mode (this is NOT sleep mode).

void	normalMode ()
	Pull the MP3 player out of standby mode.

void	reset ()
	Reset all settings to factory default.

void	resume ()
	Resume playing current track.

void	pause ()
	Pause playing current track.

void	playFolder (uint8_t folderNum, uint8_t trackNum)
	Play a specific track from a specific folder. More...

void	playLargeFolder (uint8_t folderNum, uint16_t trackNum)
	Play a specific track from a specific folder, where the track names are numbered 4 digit (e.g. 1234-mysong.mp3) and can be up to 3000. Only 15 folders ("01" to "15") are supported in this mode. More...

void	volumeAdjustSet (uint8_t gain)
	Specify volume gain. More...

void	startRepeatPlay ()
	Play all tracks.

void	stopRepeatPlay ()
	Stop repeat play.

void	repeatFolder (uint16_t folder)
	Play all tracks in a given folder. More...

void	randomAll ()
	Play all tracks in a random order.

void	startRepeat ()
	Repeat the current track.

void	stopRepeat ()
	Stop repeat play of the current track.

void	startDAC ()
	Turn on DAC.

void	stopDAC ()
	Turn off DAC.

void	sleep ()
	Put the MP3 player into sleep mode.

void	wakeUp ()
	Pull the MP3 player out of sleep mode.

bool	isPlaying ()
	Determine if a track is currently playing. More...

int16_t	currentVolume ()
	Determine the current volume setting. More...

int16_t	currentEQ ()
	Determine the current EQ setting. More...

int16_t	currentMode ()
	Determine the current mode. More...

int16_t	currentVersion ()
	Determine the current firmware version. More...

int16_t	numUsbTracks ()
	Determine the number of tracks accessible via USB. More...

int16_t	numSdTracks ()
	Determine the number of tracks accessible via SD card. More...

int16_t	numFlashTracks ()
	Determine the number of tracks accessible via flash. More...

int16_t	currentUsbTrack ()
	Determine the current track played via USB. More...

int16_t	currentSdTrack ()
	Determine the current track played via SD card. More...

int16_t	currentFlashTrack ()
	Determine the current track played via flash. More...

int16_t	numTracksInFolder (uint8_t folder)
	Determine the number of tracks in the specified folder. More...

int16_t	numFolders ()
	Determine the number of folders available. More...

void	setTimeout (unsigned long threshold)
	Set the timout value for MP3 player query responses. More...

void	findChecksum (stack &_stack)
	Determine and insert the checksum of a given config/command packet into that same packet struct. More...

void	sendData ()
	Send a config/command packet to the MP3 player.

void	flush ()
	Clear out the serial input buffer connected to the MP3 player.

int16_t	query (uint8_t cmd, uint8_t msb=0, uint8_t lsb=0)
	Query the MP3 player for specific information. More...

bool	parseFeedback ()
	Parse MP3 player query responses. More...

void	printStack (stack _stack)
	Print the entire contents of the specified config/command packet for debugging purposes. More...

void	printError ()
	Print the error description if an error has been received.

Detailed Description

Class for interacting with DFPlayerMini MP3 player.

Definition at line 128 of file DFPlayerMini_Fast.h.

Member Function Documentation

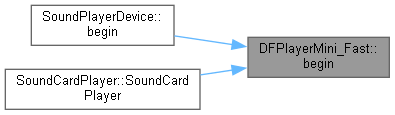

◆ begin()

bool DFPlayerMini_Fast::begin	(	Stream &	stream,
		bool	debug = `false`,
		unsigned long	threshold = `100`
	)

Configure the class.

Parameters

stream	A reference to the Serial instance (hardware or software) used to communicate with the MP3 player.
debug	Boolean used to specify if debug prints should be automatically printed to the serial monitor.
threshold	Number of ms allowed for the MP3 player to respond (timeout) to a query.

Returns: True.

Definition at line 55 of file DFPlayerMini_Fast.cpp.

Here is the caller graph for this function:

◆ currentEQ()

int16_t DFPlayerMini_Fast::currentEQ ( )

Determine the current EQ setting.

Returns: EQ setting, -1 if error.

Definition at line 733 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ currentFlashTrack()

int16_t DFPlayerMini_Fast::currentFlashTrack ( )

Determine the current track played via flash.

Returns: Current track played via flash, -1 if error.

Definition at line 845 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ currentMode()

int16_t DFPlayerMini_Fast::currentMode ( )

Determine the current mode.

Returns: Mode, -1 if error.

Definition at line 747 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ currentSdTrack()

int16_t DFPlayerMini_Fast::currentSdTrack ( )

Determine the current track played via SD card.

Returns: Current track played via SD card, -1 if error.

Definition at line 831 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ currentUsbTrack()

int16_t DFPlayerMini_Fast::currentUsbTrack ( )

Determine the current track played via USB.

Returns: Current track played via USB, -1 if error.

Definition at line 817 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ currentVersion()

int16_t DFPlayerMini_Fast::currentVersion ( )

Determine the current firmware version.

Returns: Firmware version, -1 if error.

Definition at line 761 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ currentVolume()

int16_t DFPlayerMini_Fast::currentVolume ( )

Determine the current volume setting.

Returns: Volume level (0-30), -1 if error.

Definition at line 719 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ EQSelect()

void DFPlayerMini_Fast::EQSelect ( uint8_t setting )

Set the EQ mode.

Parameters

setting The desired EQ ID.

Definition at line 288 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

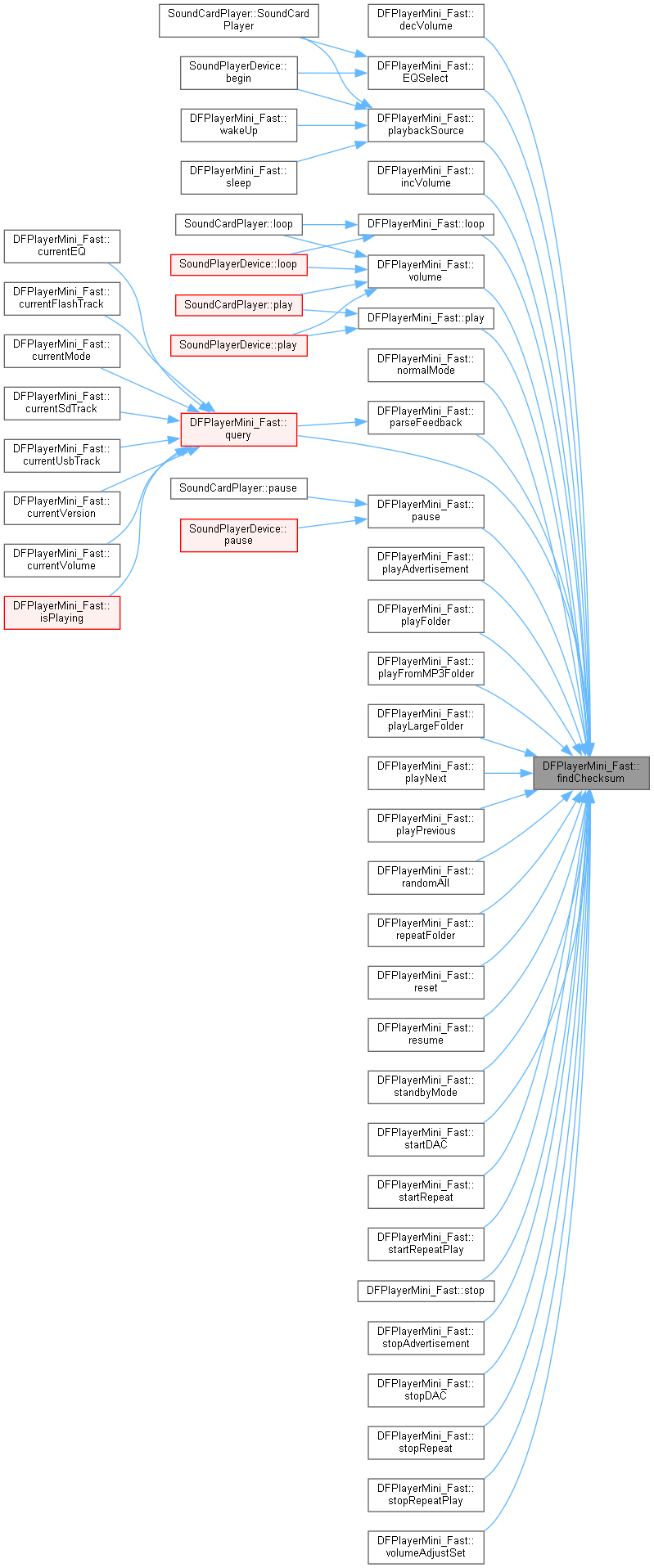

◆ findChecksum()

void DFPlayerMini_Fast::findChecksum ( stack & _stack )

Determine and insert the checksum of a given config/command packet into that same packet struct.

Parameters

_stack Reference to a struct containing the config/command packet to calculate the checksum over.

Definition at line 908 of file DFPlayerMini_Fast.cpp.

Here is the caller graph for this function:

◆ isPlaying()

bool DFPlayerMini_Fast::isPlaying ( )

Determine if a track is currently playing.

Returns: True if a track is currently playing, false if not, -1 if error.

Definition at line 700 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loop()

void DFPlayerMini_Fast::loop ( uint16_t trackNum )

Loop a specific track.

Parameters

trackNum The track number to play.

Definition at line 312 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

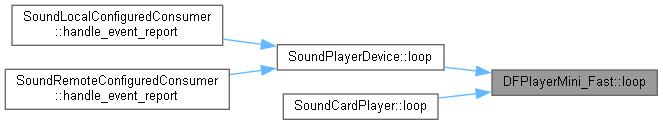

Here is the caller graph for this function:

◆ numFlashTracks()

int16_t DFPlayerMini_Fast::numFlashTracks ( )

Determine the number of tracks accessible via flash.

Returns: Number of tracks accessible via flash, -1 if error.

Definition at line 803 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

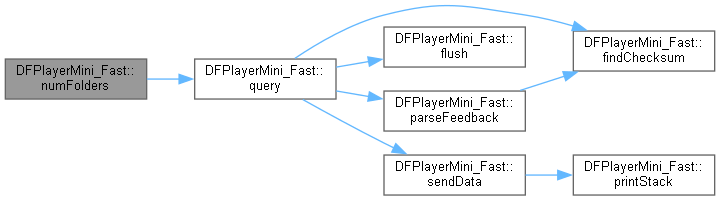

◆ numFolders()

int16_t DFPlayerMini_Fast::numFolders ( )

Determine the number of folders available.

Returns: Number of folders available, -1 if error.

Definition at line 875 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ numSdTracks()

int16_t DFPlayerMini_Fast::numSdTracks ( )

Determine the number of tracks accessible via SD card.

Returns: Number of tracks accessible via SD card, -1 if error.

Definition at line 789 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ numTracksInFolder()

int16_t DFPlayerMini_Fast::numTracksInFolder ( uint8_t folder )

Determine the number of tracks in the specified folder.

Parameters

folder The folder number.

Returns: Number of tracks in the specified folder, -1 if error.

Definition at line 861 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ numUsbTracks()

int16_t DFPlayerMini_Fast::numUsbTracks ( )

Determine the number of tracks accessible via USB.

Returns: Number of tracks accessible via USB, -1 if error.

Definition at line 775 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ parseFeedback()

bool DFPlayerMini_Fast::parseFeedback ( )

Parse MP3 player query responses.

Returns: True if success, false if error.

Definition at line 1003 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

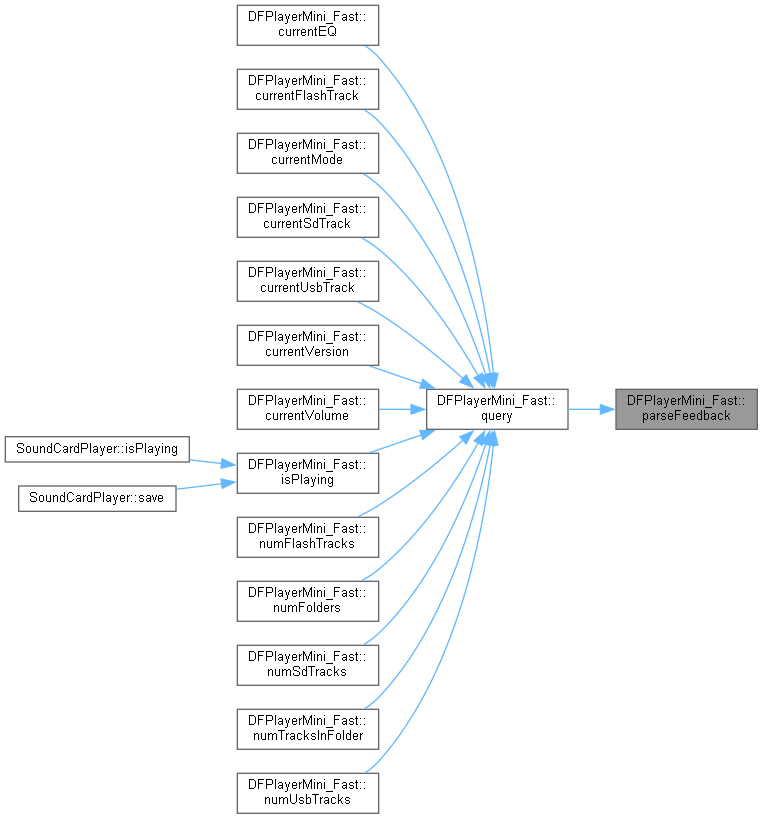

Here is the caller graph for this function:

◆ play()

void DFPlayerMini_Fast::play ( uint16_t trackNum )

Play a specific track.

Parameters

trackNum The track number to play.

Definition at line 125 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

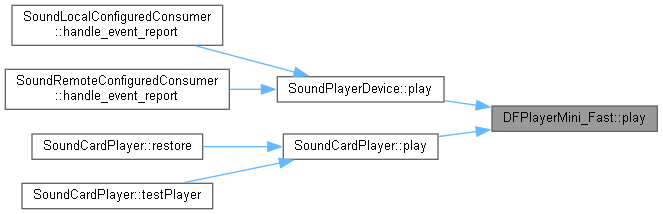

Here is the caller graph for this function:

◆ playAdvertisement()

void DFPlayerMini_Fast::playAdvertisement ( uint16_t trackNum )

Interrupt the current track with a new track.

Parameters

trackNum The track number to play.

Definition at line 186 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ playbackSource()

void DFPlayerMini_Fast::playbackSource ( uint8_t source )

Specify the playback source.

Parameters

source The playback source ID.

Definition at line 333 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

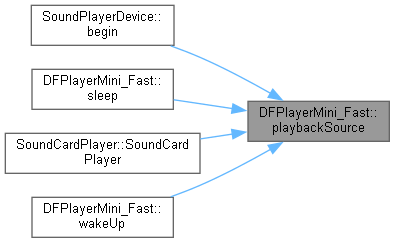

Here is the caller graph for this function:

◆ playFolder()

void DFPlayerMini_Fast::playFolder	(	uint8_t	folderNum,
		uint8_t	trackNum
	)

Play a specific track from a specific folder.

Parameters

folderNum	The folder number.
trackNum	The track number to play.

Definition at line 454 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

◆ playFromMP3Folder()

void DFPlayerMini_Fast::playFromMP3Folder ( uint16_t trackNum )

Play a specific track in the folder named "MP3".

Parameters

trackNum The track number to play.

Definition at line 165 of file DFPlayerMini_Fast.cpp.

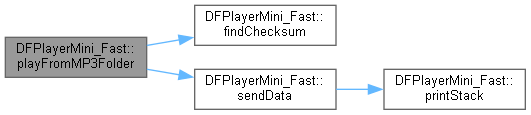

Here is the call graph for this function:

◆ playLargeFolder()

void DFPlayerMini_Fast::playLargeFolder	(	uint8_t	folderNum,
		uint16_t	trackNum
	)

Play a specific track from a specific folder, where the track names are numbered 4 digit (e.g. 1234-mysong.mp3) and can be up to 3000. Only 15 folders ("01" to "15") are supported in this mode.

Parameters

folderNum	The folder number.
trackNum	The track number to play.

Definition at line 477 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

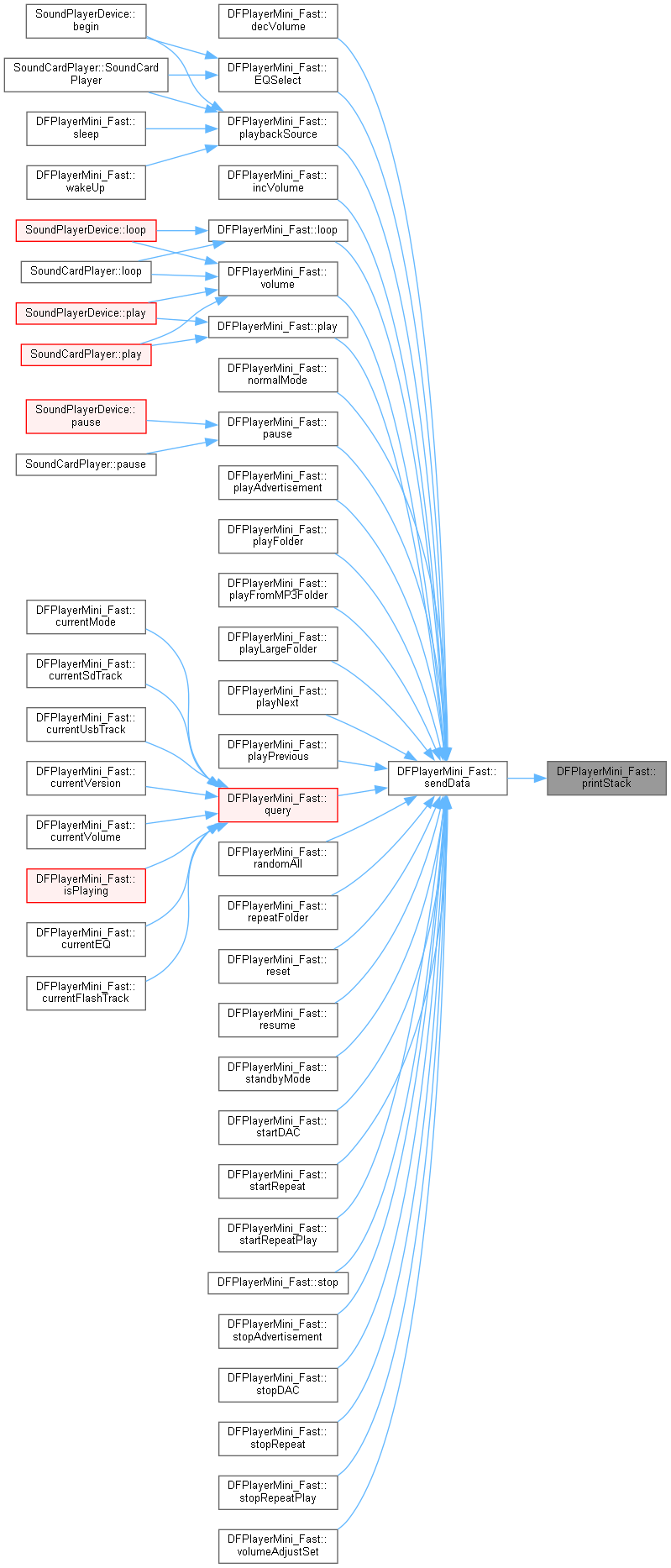

◆ printStack()

void DFPlayerMini_Fast::printStack ( stack _stack )

Print the entire contents of the specified config/command packet for debugging purposes.

Parameters

_stack Struct containing the config/command packet to print.

Definition at line 1190 of file DFPlayerMini_Fast.cpp.

Here is the caller graph for this function:

◆ query()

int16_t DFPlayerMini_Fast::query	(	uint8_t	cmd,
		uint8_t	msb = `0`,
		uint8_t	lsb = `0`
	)

Query the MP3 player for specific information.

Parameters

cmd	The command/query ID.
msb	The payload/parameter MSB.
lsb	The payload/parameter LSB.

Returns: Query response, -1 if error.

Definition at line 974 of file DFPlayerMini_Fast.cpp.

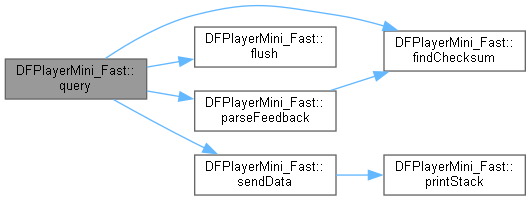

Here is the call graph for this function:

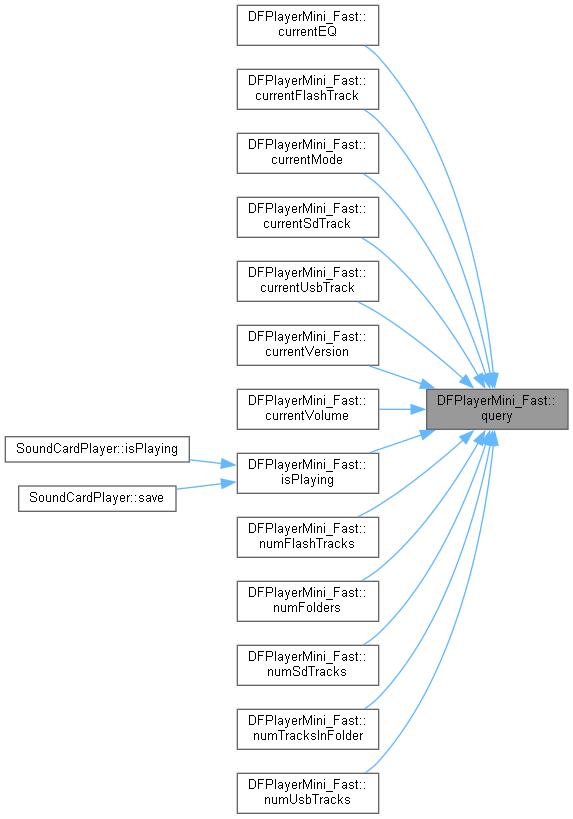

Here is the caller graph for this function:

◆ repeatFolder()

void DFPlayerMini_Fast::repeatFolder ( uint16_t folder )

Play all tracks in a given folder.

Parameters

folderNum The folder number.

Definition at line 559 of file DFPlayerMini_Fast.cpp.

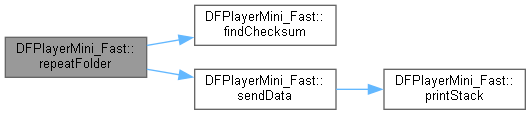

Here is the call graph for this function:

◆ setTimeout()

void DFPlayerMini_Fast::setTimeout ( unsigned long threshold )

Set the timout value for MP3 player query responses.

Parameters

threshold Number of ms allowed for the MP3 player to respond (timeout) to a query.

Definition at line 891 of file DFPlayerMini_Fast.cpp.

◆ volume()

void DFPlayerMini_Fast::volume ( uint8_t volume )

Set the volume to a specific value out of 30.

Parameters

volume The volume level (0 - 30).

Definition at line 264 of file DFPlayerMini_Fast.cpp.

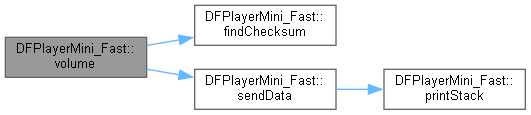

Here is the call graph for this function:

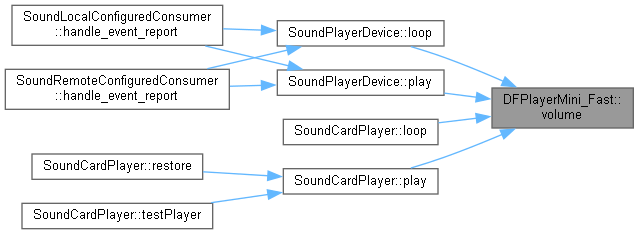

Here is the caller graph for this function:

◆ volumeAdjustSet()

void DFPlayerMini_Fast::volumeAdjustSet ( uint8_t gain )

Specify volume gain.

Parameters

gain	The specified volume gain.

Definition at line 497 of file DFPlayerMini_Fast.cpp.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

Node_Card/src/DFPlayerMini_Fast.h
Node_Card/src/DFPlayerMini_Fast.cpp

Classes

Public Member Functions

Detailed Description

Member Function Documentation

◆ begin()

◆ currentEQ()

◆ currentFlashTrack()

◆ currentMode()

◆ currentSdTrack()

◆ currentUsbTrack()

◆ currentVersion()

◆ currentVolume()

◆ EQSelect()

◆ findChecksum()

◆ isPlaying()

◆ loop()

◆ numFlashTracks()

◆ numFolders()

◆ numSdTracks()

◆ numTracksInFolder()

◆ numUsbTracks()

◆ parseFeedback()

◆ play()

◆ playAdvertisement()

◆ playbackSource()

◆ playFolder()

◆ playFromMP3Folder()

◆ playLargeFolder()

◆ printStack()

◆ query()

◆ repeatFolder()

◆ setTimeout()

◆ volume()

◆ volumeAdjustSet()
