Logic object for processing signal logic. More...

#include <Logics.h>

Inheritance diagram for Logic:

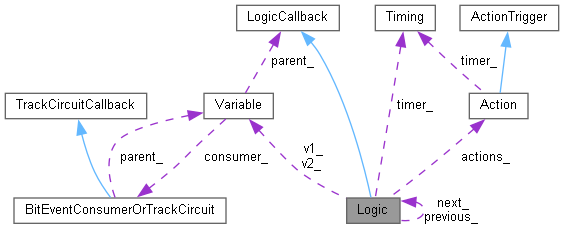

Collaboration diagram for Logic:

[legend]

Public Types
enum	GroupFunction
	Possible logic group functions.

enum	LogicFunction
	Possible Logic functions.

enum	ActionType
	Possible types of actions.

enum	Which
	possible variables that can be selected

Public Member Functions
virtual UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done) override
	Invoked on initial load of CDI and when CDI is udpated. Register configured events with OpenMRN. More...

virtual void	factory_reset (int fd)
	handle reseting CDI to factory settings More...

virtual void	Evaluate (Which v, BarrierNotifiable *done)
	Evaluates variable logic.

virtual const std::string	Description () const

Detailed Description

Logic object for processing signal logic.

Parameters

node	is the OpenLCB node object from the stack.
cfg	is the object from the configuration space that represents Logic CDI configuration
timers	is a timer object
next	is the next Logic object to be processed

Definition at line 459 of file Logics.h.

Member Function Documentation

ConfigUpdateListener::UpdateAction Logic::apply_configuration	(	int	fd,
		bool	initial_load,
		BarrierNotifiable *	done
	)

overridevirtual

Invoked on initial load of CDI and when CDI is udpated.
Register configured events with OpenMRN.

retrieve current CDI configuration for logics

Parameters

fd	file descriptor used to access CDI data
initial_load	is true when CDI is loaded after a reboot
done

Definition at line 296 of file Logics.cpp.

virtual const std::string Logic::Description ( ) const

inlinevirtual

Definition at line 535 of file Logics.h.

void Logic::factory_reset ( int fd )

virtual

handle reseting CDI to factory settings

Reset CDI configuration entries to their initial (default) values

Parameters

fd	used to access the CDI information in the file system

Definition at line 311 of file Logics.cpp.

The documentation for this class was generated from the following files:
