SoundCardPlayer Class Reference

Controls a DFPlayer Mini via SoftwareSerial, with save/restore functionality. More...

#include <SoundCardPlayer.h>

Public Member Functions
	SoundCardPlayer ()
	Construct a new SoundCardPlayer instance. More...
bool	isPlaying ()
	Check if the DFPlayer is currently playing audio. More...
void	play (uint8_t fileNum, uint8_t volume)
	Play a single file once at the given volume. More...
void	loop (uint8_t fileNum, uint8_t volume)
	Loop playback of a file indefinitely at the given volume. More...
void	pause ()
	Pause current playback.
void	reset ()
	Reset the DFPlayer and clear saved state file.
void	save ()
	Persist current playback state (request, file, volume, playing flag) to SPIFFS.
void	restore ()
	Restore playback state from SPIFFS and resume if it was playing.
void	testPlayer (uint8_t volumePct=25)
	Perform ready checks and play the first track if present. More...

Private Member Functions
void	openSaveFile_ ()
	Open or create the SPIFFS save file for this player. More...
bool	_isSdCardFound ()
	Heuristic check for SD card presence using a lightweight play probe. More...
bool	_isTrackFound (uint16_t track=1)
	Check whether a specific track exists and can be played. More...

Private Attributes
SoftwareSerial	swSerial_
	UART to DFPlayer.
uint8_t	playerNum_
	Unique player instance number.
uint8_t	currentFileNum_
	Last requested file index.
uint8_t	currentVolume_
	Last requested volume.
requestTypes	currentRequest_
	Last requested command type.
ESPFlash< uint8_t >	saveFile_
	Persistent storage for state.
DFPlayerMini_Fast	DF_Player_
	Underlying DFPlayer handle.
bool	isConnected
	True if DFPlayer init succeeded.

Detailed Description

Controls a DFPlayer Mini via SoftwareSerial, with save/restore functionality.

Definition at line 75 of file SoundCardPlayer.h.

Constructor & Destructor Documentation

SoundCardPlayer()

SoundCardPlayer::SoundCardPlayer ( )

inline

Construct a new SoundCardPlayer instance.

Configures SoftwareSerial pins for this player, initializes DFPlayer, and sets default EQ and source.

Definition at line 82 of file SoundCardPlayer.h.

Here is the call graph for this function:

Member Function Documentation

_isSdCardFound()

bool SoundCardPlayer::_isSdCardFound ( )

inlineprivate

Heuristic check for SD card presence using a lightweight play probe.

DFPlayerMini_Fast does not expose a direct "card present" flag universally, so we attempt a quick play of track 1 and observe whether the device reports "playing". If it starts, we immediately pause and report true.

Returns

true if a card with playable content appears to be present; false otherwise.

Definition at line 267 of file SoundCardPlayer.h.

Here is the caller graph for this function:

_isTrackFound()

bool SoundCardPlayer::_isTrackFound ( uint16_t  track = 1 )

inlineprivate

Check whether a specific track exists and can be played.

Parameters

track

1-based file number to probe.

Returns

true if the DFPlayer reports "playing" after issuing play(track); false otherwise.

Definition at line 285 of file SoundCardPlayer.h.

Here is the caller graph for this function:

isPlaying()

bool SoundCardPlayer::isPlaying ( )

inline

Check if the DFPlayer is currently playing audio.

Must call swSerial_.listen() before status query.

Returns

true if audio is playing

Definition at line 122 of file SoundCardPlayer.h.

loop()

void SoundCardPlayer::loop ( uint8_t  fileNum, uint8_t  volume  )

inline

Loop playback of a file indefinitely at the given volume.

Parameters

fileNum	File index to loop
volume	Volume level (0..30)

Definition at line 152 of file SoundCardPlayer.h.

openSaveFile_()

void SoundCardPlayer::openSaveFile_ ( )

inlineprivate

Open or create the SPIFFS save file for this player.

File name is SAVE_FILE_NAME + binary representation of playerNum_.

Definition at line 251 of file SoundCardPlayer.h.

Here is the caller graph for this function:

play()

void SoundCardPlayer::play ( uint8_t  fileNum, uint8_t  volume  )

inline

Play a single file once at the given volume.

Parameters

fileNum	File index to play (1-based)
volume	Volume level (0..30)

Definition at line 133 of file SoundCardPlayer.h.

Here is the caller graph for this function:

testPlayer()

void SoundCardPlayer::testPlayer ( uint8_t  volumePct = 25 )

inline

Perform ready checks and play the first track if present.

Parameters

volumePct

Volume in percent (0..100). Mapped to DF volume 0..30.

Definition at line 217 of file SoundCardPlayer.h.

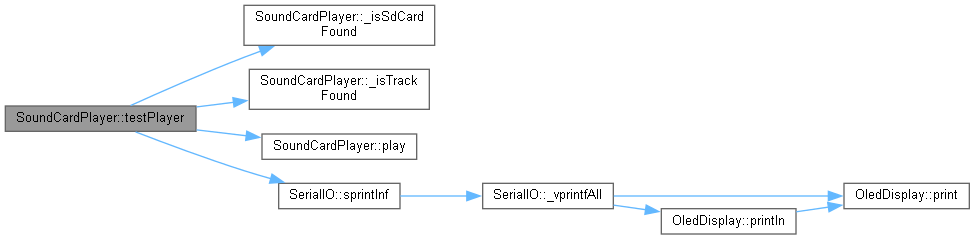

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• Sound_Card/SoundCardPlayer.h
