CurrentMonitor Struct Reference

#include <CurrentMonitor.h>

Public Member Functions
void	begin (int pin, int inSignalPin, const char *msg, float inSampleMax=800)
void	check ()

Static Public Member Functions
static boolean	checkTime ()

Public Attributes
int	pin
int	signalPin
float	currentSampleMax
float	current
const char *	msg

Static Public Attributes
static long int	sampleTime =0

Detailed Description

This structure/class describes a current monitor.

Definition at line 28 of file CurrentMonitor.h.

Member Function Documentation

begin()

void CurrentMonitor::begin	(	int	pin,
		int	inSignalPin,
		const char *	msg,
		float	inSampleMax = 800
	)

begin function.

Parameters

pin	Attached pin. UNEFINED_PIN to inactivate this monitor.
inSignalPin	Pin to set LOW if a shortcut is detectexd.
msg	Message to send to console when a smoothed current value greater than maximum is detected.
inSampleMax	Maximum value of the current. Default is 300 for AVR, 800 for ESP32.

Definition at line 22 of file CurrentMonitor.cpp.

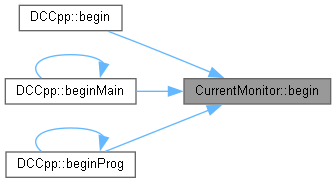

Here is the caller graph for this function:

check()

void CurrentMonitor::check

(

)

Checks the current on this monitor.

Definition at line 39 of file CurrentMonitor.cpp.

Here is the caller graph for this function:

checkTime()

boolean CurrentMonitor::checkTime ( )

static

Checks if sufficient time has elapsed since last update. Common to all monitors.

Definition at line 31 of file CurrentMonitor.cpp.

Here is the caller graph for this function:

Member Data Documentation

current

float CurrentMonitor::current

Value of the last measured current.

Definition at line 33 of file CurrentMonitor.h.

currentSampleMax

float CurrentMonitor::currentSampleMax

Value of the maximum current accepted without problem.

Definition at line 32 of file CurrentMonitor.h.

msg

const char* CurrentMonitor::msg

Message to send when excessive current is measured.

Definition at line 34 of file CurrentMonitor.h.

pin

int CurrentMonitor::pin

Attached check pin.

Definition at line 30 of file CurrentMonitor.h.

sampleTime

long int CurrentMonitor::sampleTime =0

static

time elapsed since last measurement. This delay is common to all monitors.

Definition at line 29 of file CurrentMonitor.h.

signalPin

int CurrentMonitor::signalPin

signal pin.

Definition at line 31 of file CurrentMonitor.h.

---

The documentation for this struct was generated from the following files:

• DCC_Card/CurrentMonitor.h
• DCC_Card/CurrentMonitor.cpp
