#include <DummyGPIO.h>

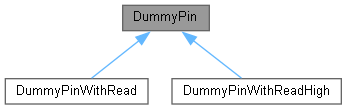

Inheritance diagram for DummyPin:

Static Public Member Functions
static void	hw_init ()
	Initializes the hardware to the required settings.

static void	hw_set_to_safe ()

static void	set (bool value)
	Sets the output pin to a given level.

static void	toggle ()
	Toggles the output pin level.

static bool	is_output ()
	Returns whether this is an output pin or not.

static void	set_hw ()
	Sets to "hardware" function.

static void	set_output ()
	Sets to "GPIO out" function.

static void	set_input ()
	Sets to "GPIO in" function.

Detailed Description

GPIO Pin definition structure with no actual pin behind it. All writes to this pin will be silently ignored. Reads from this pin will not compile.

Definition at line 42 of file DummyGPIO.h.

Member Function Documentation

static void DummyPin::hw_set_to_safe ( )

inlinestatic

Resets the hardware to a mode that is safe when there is no software running. This uaully means turning off outputs that consume power.

Definition at line 50 of file DummyGPIO.h.

The documentation for this struct was generated from the following file:
