Output Struct Reference

#include <Outputs.h>

Collaboration diagram for Output:

Public Member Functions
void	begin (int id, int pin, int iFlag)
void	set (int id, int pin, int iFlag)
void	activate (int s=1)
bool	isActivated ()

Static Public Member Functions
static Output *	get (int id)
static void	remove (int id)
static int	count ()
static void	show ()
static bool	parse (char *c)
static Output *	create (int id, int pin, int iFlag)

Public Attributes
struct OutputData	data
Output *	nextOutput

Static Public Attributes
static Output *	firstOutput =NULL

Detailed Description

Pins can be activated or dis-activated. The default is to set ACTIVE pins HIGH and INACTIVE pins LOW. However, this default behavior can be inverted for any pin in which case ACTIVE=LOW and INACTIVE=HIGH.

Definitions and state (ACTIVE/INACTIVE) for pins are retained in EEPROM and restored on power-up. The default is to set each defined pin to active or inactive according to its restored state. However, the default behavior can be modified so that any pin can be forced to be either active or inactive upon power-up regardless of its previous state before power-down.

To have this sketch utilize one or more Arduino pins as custom outputs, first define/edit/delete output definitions using the following variation of the "Z" command.

When controlled as such, the Arduino updates and stores the direction of each output in EEPROM so that it is retained even without power. A list of the current states of each output in the form <Y ID STATE> is generated by this sketch whenever the <s> status command is invoked. This provides an efficient way of initializing the state of any outputs being monitored or controlled by a separate interface or GUI program.

Definition at line 134 of file Outputs.h.

Member Function Documentation

activate()

void Output::activate

(

int

s = 1

)

Change the activation state of the output. The state of the pin is updated by this function.

Parameters

s	new state : see iFlag description in class description..

Definition at line 82 of file Outputs.cpp.

Here is the caller graph for this function:

begin()

void Output::begin	(	int	id,
		int	pin,
		int	iFlag
	)

Initialize the output created by regular C++ instantiation.

Parameters

id	The numeric ID (0-32767) of the output.
pin	The arduino pin number to use for the output.
iFlag	Defines the operational behavior of the output based on bits 0, 1, and 2 (see in class description for values).

Remarks

Should not be used in command line mode.

Definition at line 32 of file Outputs.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

count()

int Output::count ( )

static

Get the total number of outputs.

Returns

Number of outputs.

Remarks

Only available when USE_EEPROM or USE_TEXTCOMMAND is defined.

Definition at line 148 of file Outputs.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

create()

Output * Output::create ( int  id, int  pin, int  iFlag  )

static

Creates a new output in the list..

Parameters

id	The numeric ID (0-32767) of the output.
pin	The arduino pin number to use for the output.
iFlag	Defines the operational behavior of the output based on bits 0, 1, and 2 (see in class description for values).

Remarks

Should not be used in C++ mode.

Only available when USE_TEXTCOMMAND is defined.

Definition at line 260 of file Outputs.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

get()

Output * Output::get ( int  id )

static

Get a particular output.

Parameters

id	The numeric ID (0-32767) of the output.

Returns

The found output or NULL if not found.

Remarks

Only available when USE_EEPROM or USE_TEXTCOMMAND is defined.

Definition at line 109 of file Outputs.cpp.

Here is the caller graph for this function:

isActivated()

bool Output::isActivated ( )

inline

Checks if the output is activated or not.

Returns

True if the output is activated. Otherwise false (of course...).

Definition at line 158 of file Outputs.h.

parse()

bool Output::parse ( char *  c )

static

Do command according to the given command string.

Parameters

c	string to interpret... See syntax in class description.

Remarks

Only available when USE_TEXTCOMMAND is defined.

Definition at line 222 of file Outputs.cpp.

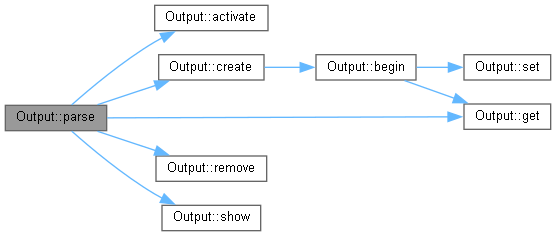

Here is the call graph for this function:

remove()

void Output::remove ( int  id )

static

Removes a particular output.

Parameters

id	The numeric ID (0-32767) of the output.

Remarks

Only available when USE_EEPROM or USE_TEXTCOMMAND is defined.

Definition at line 116 of file Outputs.cpp.

Here is the caller graph for this function:

set()

void Output::set	(	int	id,
		int	pin,
		int	iFlag
	)

Force the output values created by command line.

Parameters

id	The numeric ID (0-32767) of the output.
pin	The arduino pin number to use for the output.
iFlag	Defines the operational behavior of the output based on bits 0, 1, and 2 (see in class description for values).

Remarks

Should not be used in C++ mode.

Definition at line 62 of file Outputs.cpp.

Here is the caller graph for this function:

show()

void Output::show ( )

static

Show the content of all the outputs.

Remarks

Only available when DCCPP_PRINT_DCCPP is defined.

Definition at line 283 of file Outputs.cpp.

Here is the caller graph for this function:

Member Data Documentation

data

struct OutputData Output::data

Data associated to this output.

Definition at line 135 of file Outputs.h.

firstOutput

Output * Output::firstOutput =NULL

static

Address of the first object of this class. NULL means empty list of outputs. Do not change it !

Definition at line 161 of file Outputs.h.

nextOutput

Output* Output::nextOutput

Address of the next object of this class. NULL means end of the list of outputs. Do not change it !

Definition at line 162 of file Outputs.h.

---

The documentation for this struct was generated from the following files:

• DCC_Card/Outputs.h
• DCC_Card/Outputs.cpp
