Producer implementation for BSD cards. More...

#include <BsdConfiguredProducer.h>

Inheritance diagram for BsdConfiguredProducer:

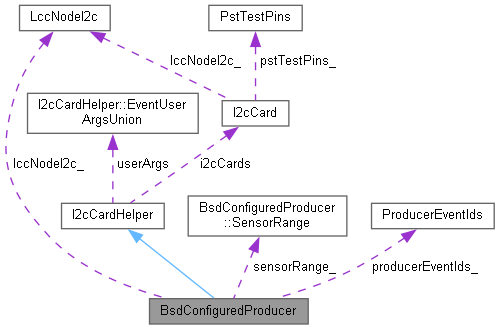

Collaboration diagram for BsdConfiguredProducer:

[legend]

Classes
struct	SensorRange
	Holds configured min/max range values for all sensors on a card. More...

Public Types
typedef BsdCardConfig	CardConfig_type

typedef BsdLineConfig	LineGroupConfig_type

Public Member Functions
template<unsigned NUM_CARDS>
	BsdConfiguredProducer (openlcb::Node node, const openlcb::RepeatedGroup< CardConfig_type, NUM_CARDS > &configOffset, uint8_t numDevicesPerCard, EventDeviceTypes eventDeviceType, const char cardDescription) __attribute__((noinline))
	Construct a BSD configured producer. More...

UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done) override
	Reads CDI, registers events, initializes I²C and debouncers. More...

void	factory_reset (int fd) override
	Factory reset: defaults + fresh producer Event IDs for each line.

bool	ensureUniqueI2cOffset (uint8_t cardIndex, uint8_t bus, uint8_t offset)

Public Attributes
union I2cCardHelper::EventUserArgsUnion	userArgs

Protected Member Functions
void	_do_unregister ()
	Unregisters this event handler from the global registry.

void	handle_identify_consumer (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE
	Process request to identify produced events.

void	handle_identify_producer (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE
	Process request to identify produced events.

virtual void	SendEventIdentified (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done)
	Sends Producer- or Consumer-Identified for `registry_entry`. More...

void	applyI2cInfo (int fd, uint8_t cardIndex, i2cInfoConfig_type cfgI2cInfoRef)
	sets up the MCP card's I2C connection using the user provided (CDI) configuration information (bus and address offset) More...

void	resetCardInfo (int fd, cardInfoConfig_type cfgI2cInfoRef)
	resets the card configuration information (description field). More...

void	resetI2cInfo (int fd, i2cInfoConfig_type cfgI2cInfoRef)
	resets the card's I2C configuration information (bus and address fields). More...

virtual void	drive_pin (uint8_t card, uint8_t pin, bool set)

virtual void	drive_pin_ext (uint8_t card, uint8_t pin, bool set, uint8_t intArg)

EventUserArgsUnion	unpack_user_args (const openlcb::EventRegistryEntry &re) const
	Small helper to unpack our 4-byte user_arg payload from the registry entry.

void	handle_event_report (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE

Private Member Functions
void	_sendSensorRangesIfNeeded (uint8_t cardIndex)
	Initialize (or re-initialize) sending trip level handling and I²C callbacks for one card. More...

bool	_sendSensorRanges (uint8_t cardIndex)
	Sends the configured min/max distance ranges to a BSD Card. More...

bool	_updateSensorValues (uint8_t cardIndex)
	Fetch a 2-byte sensor word from a card and split it into globals. More...

bool	_processShortState (int cardIndex, int deviceIndex)
	Debounce + dispatch SHORT on one line.

bool	_processOccupancyState (int cardIndex, int deviceIndex)
	Debounce + dispatch OCCUPANCY on one line (suppressed while short is active).

void	_initI2cCards (bool isProducer)
	Initializes the array of I2C card objects using the configured card type. More...

Detailed Description

Producer implementation for BSD cards.

Lifecycle:

apply_configuration reads CDI, registers events, initializes I²C helpers and debouncers.
See also
poll_33hz kicks the polling FSM (~33 Hz) which calls

notify().
See also
notify iterates cards and lines, reading I²C once per card and invoking

processCardSensors with the “one event per tick” rule.

Definition at line 150 of file BsdConfiguredProducer.h.

Member Typedef Documentation

◆ CardConfig_type

typedef BsdCardConfig BsdConfiguredProducer::CardConfig_type

Type for the BSD card CDI configuration entry

Definition at line 153 of file BsdConfiguredProducer.h.

◆ LineGroupConfig_type

typedef BsdLineConfig BsdConfiguredProducer::LineGroupConfig_type

Type for the BSD CDI configuration entry

Definition at line 154 of file BsdConfiguredProducer.h.

Constructor & Destructor Documentation

◆ BsdConfiguredProducer()

template<unsigned NUM_CARDS>

BsdConfiguredProducer::BsdConfiguredProducer	(	openlcb::Node *	node,
		const openlcb::RepeatedGroup< CardConfig_type, NUM_CARDS > &	configOffset,
		uint8_t	numDevicesPerCard,
		EventDeviceTypes	eventDeviceType,
		const char *	cardDescription
	)

inline

Construct a BSD configured producer.

Template Parameters

NUM_CARDS number of BSD cards managed by this instance

Parameters

node	owning OpenLCB node
configOffset	CDI repeated-group offset for

See also: BsdCardConfig

Parameters

numDevicesPerCard	number of lines per card
eventDeviceType	device type for default event allocation
cardDescription	text descripton of the card - "BSD CARD"

Definition at line 165 of file BsdConfiguredProducer.h.

Member Function Documentation

◆ _initI2cCards()

void I2cCardHelper::_initI2cCards ( bool isProducer )

inlineprivateinherited

Initializes the array of I2C card objects using the configured card type.

Allocates and initializes each I2C card in the array to the type specified by the cardType_ member. If isProducer is true, registers each card's polling callback.

Parameters

isProducer True if the card is used as a producer and requires polling.

Definition at line 460 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _sendSensorRanges()

bool BsdConfiguredProducer::_sendSensorRanges ( uint8_t cardIndex )

inlineprivate

Sends the configured min/max distance ranges to a BSD Card.

Copies the contents of

See also: sensorRange_ into a temporary buffer and transmits it over I²C to the specified card. The card uses these thresholds to evaluate sensor distance readings against occupancy detection criteria.

Parameters

cardIndex Index of the BSD Card to receive the range data.

Returns: true when range sent successfully

Definition at line 398 of file BsdConfiguredProducer.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _sendSensorRangesIfNeeded()

void BsdConfiguredProducer::_sendSensorRangesIfNeeded ( uint8_t cardIndex )

inlineprivate

Initialize (or re-initialize) sending trip level handling and I²C callbacks for one card.

Sends the relay's trip level once, clears the resend flag needsRange_, and registers connect/disconnect callbacks so we resend trip level after a reconnect.

Definition at line 368 of file BsdConfiguredProducer.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _updateSensorValues()

bool BsdConfiguredProducer::_updateSensorValues ( uint8_t cardIndex )

inlineprivate

Fetch a 2-byte sensor word from a card and split it into globals.

Parameters

cardIndex card index

Returns: true if the I²C read succeeded (offline cards still return 0 via helper)

Definition at line 421 of file BsdConfiguredProducer.h.

Here is the call graph for this function:

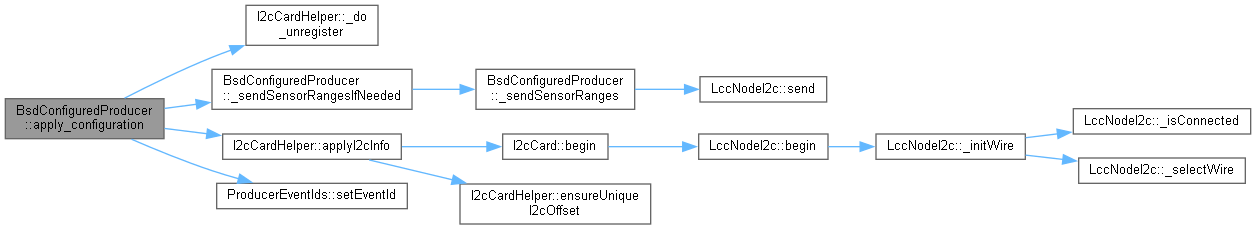

◆ apply_configuration()

UpdateAction BsdConfiguredProducer::apply_configuration	(	int	fd,
		bool	initial_load,
		BarrierNotifiable *	done
	)

inlineoverride

Reads CDI, registers events, initializes I²C and debouncers.

Parameters

fd	config file descriptor
initial_load	true on cold start
done	barrier notifiable

Returns: REINIT_NEEDED to trigger event identify

Definition at line 208 of file BsdConfiguredProducer.h.

Here is the call graph for this function:

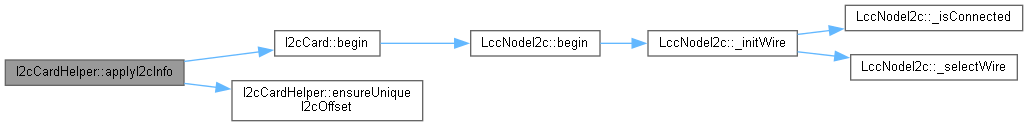

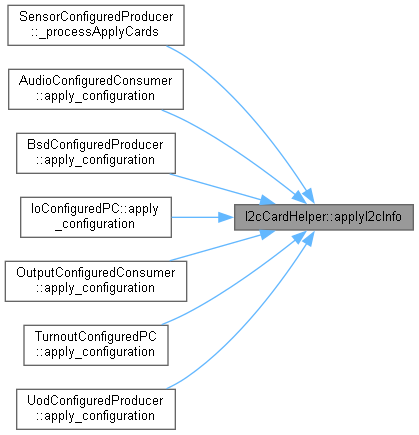

◆ applyI2cInfo()

void I2cCardHelper::applyI2cInfo	(	int	fd,
		uint8_t	cardIndex,
		i2cInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

sets up the MCP card's I2C connection using the user provided (CDI) configuration information (bus and address offset)

Note

producer/consumers apply_configuration() callback invoke this method to initialize the I2C / MCP connection information for the card

all I2C connected cards have CDI section for user provided bus and address information (which must match the settings of the I2C enabeled card)

HOOK: Typical call site is within your apply_configuration() loop:

read bus & offset from CDI
initialize the corresponding i2cCards[cardIndex]

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cardIndex	specifies which card the configuration is for. Used to update the i2cCards[] array and initialize the connection
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration for the MCP card

Definition at line 295 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drive_pin()

virtual void I2cCardHelper::drive_pin	(	uint8_t	card,
		uint8_t	pin,
		bool	set
	)

inlineprotectedvirtualinherited

Hook for consumers: drive one output pin (simple case). Default does nothing; simple consumers override this.

Parameters

card	card index (as stored in user_arg)
pin	pin index (as stored in user_arg)
set	desired logical state from the event semantics (SET/ON = true, CLR/OFF = false)

Reimplemented in IoConfiguredPC, OutputConfiguredConsumer, ServoConfiguredConsumer, TurnoutConfiguredPC, and NeoPixelConfiguredConsumer.

Definition at line 392 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ drive_pin_ext()

virtual void I2cCardHelper::drive_pin_ext	(	uint8_t	card,
		uint8_t	pin,
		bool	set,
		uint8_t	intArg
	)

inlineprotectedvirtualinherited

Extended hook for consumers that also need the CDI intArg (e.g., audio message index). Default forwards to drive_pin(...) so existing consumers remain unchanged.

Reimplemented in AudioConfiguredConsumer.

Definition at line 402 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

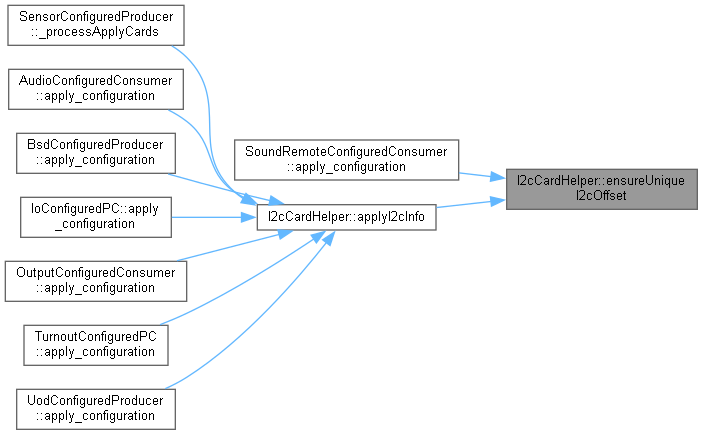

◆ ensureUniqueI2cOffset()

bool I2cCardHelper::ensureUniqueI2cOffset	(	uint8_t	cardIndex,
		uint8_t	bus,
		uint8_t	offset
	)

inlineinherited

Check for duplicate offsets on the same I2C bus. Automatically resets the tracker on the first call per config pass.

Remarks: Call this once per card during your apply_configuration loop, with the CDI values.

Parameters

cardIndex	Index of the card in the config loop.
bus	I2C bus number (0 or 1).
offset	I2C offset (0–7).

Returns: true if this (bus, offset) was already claimed.

Definition at line 183 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ handle_event_report()

void I2cCardHelper::handle_event_report	(	const openlcb::EventRegistryEntry &	registry_entry,
		openlcb::EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprotectedinherited

Default consumer handler: maps an incoming Event Report to (card,pin,set,intArg) and calls drive_pin_ext(...). Producers are ignored.

Definition at line 418 of file I2cCardHelper.h.

Here is the call graph for this function:

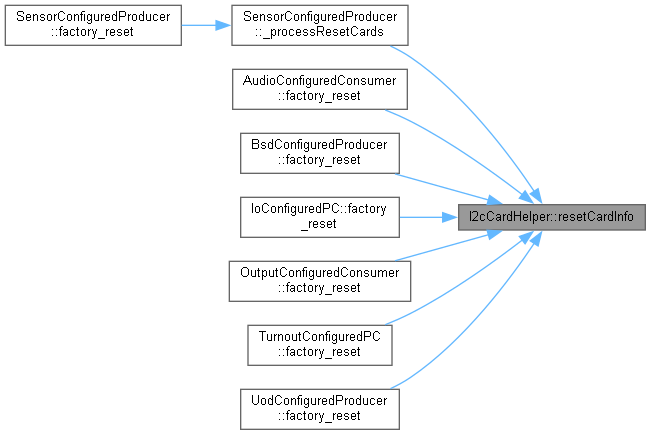

◆ resetCardInfo()

void I2cCardHelper::resetCardInfo	(	int	fd,
		cardInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

resets the card configuration information (description field).

Note: invoke from the consumer/producer factory_reset() to reset the card configuration

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration block for the card's info (description, etc)

Definition at line 309 of file I2cCardHelper.h.

Here is the caller graph for this function:

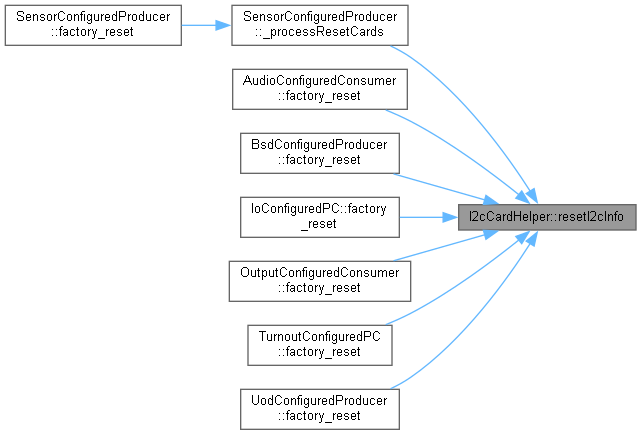

◆ resetI2cInfo()

void I2cCardHelper::resetI2cInfo	(	int	fd,
		i2cInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

resets the card's I2C configuration information (bus and address fields).

Note: invoke from the consumer/producer factory_reset() to reset the card configuration

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration for card's I2C info (bus/offset)

Definition at line 321 of file I2cCardHelper.h.

Here is the caller graph for this function:

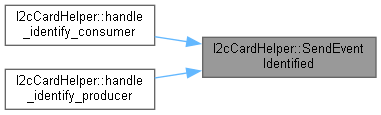

◆ SendEventIdentified()

virtual void I2cCardHelper::SendEventIdentified	(	const openlcb::EventRegistryEntry &	registry_entry,
		openlcb::EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprotectedvirtualinherited

Sends Producer- or Consumer-Identified for registry_entry.

Identification type is inferred from the registry entry’s packed user args (see

See also: isProducer). Override to customize the MTI or payload.

Reimplemented in TurnoutConfiguredPC.

Definition at line 273 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ userArgs

union I2cCardHelper::EventUserArgsUnion I2cCardHelper::userArgs

inherited

event arguments

The documentation for this class was generated from the following file:

Node_Card/BsdConfiguredProducer.h

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Private Member Functions

Detailed Description

Member Typedef Documentation

◆ CardConfig_type

◆ LineGroupConfig_type

Constructor & Destructor Documentation

◆ BsdConfiguredProducer()

Member Function Documentation

◆ _initI2cCards()

◆ _sendSensorRanges()

◆ _sendSensorRangesIfNeeded()

◆ _updateSensorValues()

◆ apply_configuration()

◆ applyI2cInfo()

◆ drive_pin()

◆ drive_pin_ext()

◆ ensureUniqueI2cOffset()

◆ handle_event_report()

◆ resetCardInfo()

◆ resetI2cInfo()

◆ SendEventIdentified()

Member Data Documentation

◆ userArgs
