DccCmdMonitor Class Reference

#include <DccCmdMonitor.h>

Public Types
enum	COMMAND_TYPE {   ALL , SPEED , FUNCTION , TURNOUT_BOARD ,   TURNOUT_OUTPUT , SIGNAL , CV }

Public Member Functions
	DccCmdMonitor (int dcc_interrupt_pin)
void	init (Track track)
void	process ()
bool	getMsg (COMMAND_TYPE type, char *msg, uint8_t *nBytes)
bool	get (COMMAND_TYPE type, uint16_t addr, uint8_t *param3, uint8_t *param4)
void	startMonitor (uint16_t addr)
void	stopMonitor (uint16_t addr)

Private Member Functions
void	remove (COMMAND_TYPE type, uint16_t addr)
bool	isMonitored (uint16_t addr)

Detailed Description

class for monitoring DCC commands

Note

must specify DCC address to be monitored

to print to serial monitor messages define MONITOR_PRINT_DCC_COMMANDS

Example:

#include "DccCmdMonitor.h"
#define MONITOR_DCC_MAIN_PIN 16 // ESP32 pin for DCC interrupts of main track DCC signals

DccCmdMonitor monitorDccCmdMain(MONITOR_DCC_MAIN_PIN);
setup() {
  monitorDccCmdMain.init(Track::MAIN);   // Initialize monitoring of the MAIN track
  monitorDccCmdMain.startMonitor(addr); // monitor a specific DCC address on the main track (i.e. cab's address for monitoring speed)
  monitorDccCmdMain.stopMonitor(addr); // stop monitoring a specific DCC address
}

loop() {
  monitorDccCmdMain.process();
  // To monitor a layout for specific DCC commands being issued, use get() to retrieve command specific information
  // Following are the get() formats for each of the support DCC command types
  // For each monitored DCC command type, get() returns information after the command is received from a command station and queued
  // Parameters 3 and 4 are passed by address and updated by get()
  bool success = monitorDccCmdMain.get(SPEED, addr, &direction, &speed); // for the specified DCC address, get a queued speed command's speed and direction
  bool success = monitorDccCmdMain.get(FUNCTION, addr, &state, &funcGrp); // for the specified DCC address, get a queued function command function group and state
  bool success = monitorDccCmdMain.get(TURNOUT_BOARD, addr, &dir, &outputPair); // for the specified DCC address, get a queued turnout board command's output pair (1-4) and direction
  bool success = monitorDccCmdMain.get(TURNOUT_OUTPUT, addr, &dir, 0); // for the specified DCC address, get a queued turnout output command's direction
  bool success = monitorDccCmdMain.get(SIGNAL, addr, &state, 0); // for the specified DCC address, get a queued signal command's state
  bool success = monitorDccCmdMain.get(CV, cv, &value, 0); // for the specified CV, get a queued CV command's state
  bool success = monitorDccCmdMain.getMsg(ALL, &msg[0], &nBytes)); // get any type of availabile formatted message to send to serial
}

Definition at line 83 of file DccCmdMonitor.h.

Member Enumeration Documentation

COMMAND_TYPE

enum DccCmdMonitor::COMMAND_TYPE

indicates the type of DCC command being monitored

Enumerator
ALL	indicates all types of DCC commands
SPEED	indicates DCC Speed command
FUNCTION	indicates DCC Function (FN) command
TURNOUT_BOARD	indicates DCC Turnout Board command
TURNOUT_OUTPUT	indicates DCC Turnout Output command
SIGNAL	indicates DCC Signal command
CV	indicates DCC CV change command

Definition at line 86 of file DccCmdMonitor.h.

Constructor & Destructor Documentation

DccCmdMonitor()

DccCmdMonitor::DccCmdMonitor ( int  dcc_interrupt_pin )

inline

DccCmdMonitor constructor

Parameters

dcc_interrupt_pin

is the ESP32 interrupt pin for the DCC signal

Definition at line 115 of file DccCmdMonitor.h.

Member Function Documentation

get()

bool DccCmdMonitor::get ( COMMAND_TYPE  type, uint16_t  addr, uint8_t *  param3, uint8_t *  param4  )

inline

Obtains a queued Dcc command

Parameters

	type	indicates the type of Dcc command
	addr	indicates the DCC address of the command
[out]	param3	command specific data
[out]	param4	command specific data

Returns

true if message is found

Definition at line 166 of file DccCmdMonitor.h.

Here is the call graph for this function:

getMsg()

bool DccCmdMonitor::getMsg ( COMMAND_TYPE  type, char *  msg, uint8_t *  nBytes  )

inline

Obtains a queued Dcc command formmatted as a message < d parms >

Parameters

	type	indicates the type of Dcc command
[in,out]	msg	points at buffer to hold returned message
[out]	nBytes	number of bytes in the message

Returns

true if message is found

Definition at line 147 of file DccCmdMonitor.h.

Here is the caller graph for this function:

init()

void DccCmdMonitor::init ( Track  track )

inline

Initialize the object by invoking NmraDcc object init()

Definition at line 124 of file DccCmdMonitor.h.

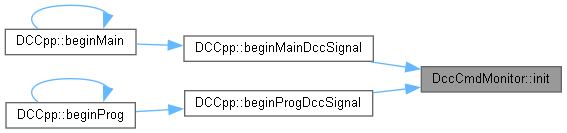

Here is the caller graph for this function:

isMonitored()

bool DccCmdMonitor::isMonitored ( uint16_t  addr )

inlineprivate

checks to see if a DCC addr is being monitored

Parameters

addr	is the DCC address

Returns

true if the address is being monitored

Definition at line 251 of file DccCmdMonitor.h.

process()

void DccCmdMonitor::process ( )

inline

Process possible DCC commands queued by invoking object NmraDcc object process()

Definition at line 137 of file DccCmdMonitor.h.

Here is the caller graph for this function:

remove()

void DccCmdMonitor::remove ( COMMAND_TYPE  type, uint16_t  addr  )

inlineprivate

delete a queued command

Parameters

type	indicates the type of Dcc command
addr	indicates the DCC address of the command

Definition at line 237 of file DccCmdMonitor.h.

Here is the caller graph for this function:

startMonitor()

void DccCmdMonitor::startMonitor ( uint16_t  addr )

inline

starts monitoring for commands of specified DCC addr on track associated with this object

Parameters

addr	is the address to start monitoring

Definition at line 217 of file DccCmdMonitor.h.

stopMonitor()

void DccCmdMonitor::stopMonitor ( uint16_t  addr )

inline

stops monitoring for commands of specified DCC addr

Parameters

addr	is the address to stop monitoring

Definition at line 224 of file DccCmdMonitor.h.

---

The documentation for this class was generated from the following file:

• DCC_Card/DccCmdMonitor.h
