Producer and Consumer class for Node Card's IO, both input and output GPIO pins. More...

#include <NodeCardIoConfiguredPC.h>

Inheritance diagram for NodeCardIoConfiguredPC:

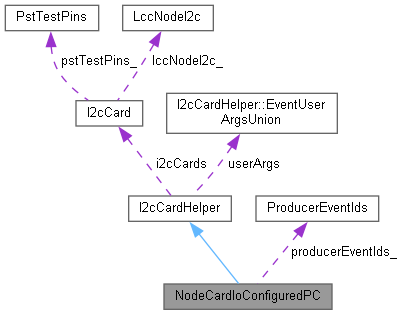

Collaboration diagram for NodeCardIoConfiguredPC:

[legend]

Public Types
typedef NodeCardIoConfig	CardConfig_type

typedef NodeIoConfig	LineConfig_type

Public Member Functions
	NodeCardIoConfiguredPC (openlcb::Node *pNode, const CardConfig_type &configOffset, uint8_t numDevicesPerCard, EventDeviceTypes eventDeviceType)

openlcb::Polling *	polling ()

void	poll_33hz (openlcb::WriteHelper helper, Notifiable done) override
	Call from the refresh loop.

void	notify () override
	Polls the state of input pins on Input/Output Cards and triggers events on state changes. More...

UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done) OVERRIDE
	Invoked on initial load of CDI and when CDI is udpated. Register configured events with OpenMRN. More...

void	factory_reset (int fd) OVERRIDE
	Reset CDI configuration entries to their initial (default) values. More...

void	handle_event_report (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE
	Process consumed event for the a pin configured for output on the Node Card I/O line configured pins. Use args passed with the event to determine which pin to set on or off. More...

bool	ensureUniqueI2cOffset (uint8_t cardIndex, uint8_t bus, uint8_t offset)

Public Attributes
union I2cCardHelper::EventUserArgsUnion	userArgs

Protected Member Functions
void	handle_identify_consumer (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE
	Process request to identify produced events.

void	handle_identify_producer (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done) OVERRIDE
	Process request to identify produced events.

virtual void	SendEventIdentified (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport event, BarrierNotifiable done)
	Sends Producer- or Consumer-Identified for `registry_entry`. More...

void	applyI2cInfo (int fd, uint8_t cardIndex, i2cInfoConfig_type cfgI2cInfoRef)
	sets up the MCP card's I2C connection using the user provided (CDI) configuration information (bus and address offset) More...

void	resetCardInfo (int fd, cardInfoConfig_type cfgI2cInfoRef)
	resets the card configuration information (description field). More...

void	resetI2cInfo (int fd, i2cInfoConfig_type cfgI2cInfoRef)
	resets the card's I2C configuration information (bus and address fields). More...

virtual void	drive_pin (uint8_t card, uint8_t pin, bool set)

virtual void	drive_pin_ext (uint8_t card, uint8_t pin, bool set, uint8_t intArg)

EventUserArgsUnion	unpack_user_args (const openlcb::EventRegistryEntry &re) const
	Small helper to unpack our 4-byte user_arg payload from the registry entry.

Private Member Functions
void	_do_unregister ()
	Removes registration of this event handler from the global event registry.

void	_initI2cCards (bool isProducer)
	Initializes the array of I2C card objects using the configured card type. More...

Private Attributes
uint8_t	nextCardToPoll_
	Shadow copy of the event IDs produced by each of the UOD cards.

Detailed Description

Producer and Consumer class for Node Card's IO, both input and output GPIO pins.

Definition at line 89 of file NodeCardIoConfiguredPC.h.

Member Typedef Documentation

◆ CardConfig_type

typedef NodeCardIoConfig NodeCardIoConfiguredPC::CardConfig_type

Type for Node Card's repeating I/O configuration entry

Definition at line 95 of file NodeCardIoConfiguredPC.h.

◆ LineConfig_type

typedef NodeIoConfig NodeCardIoConfiguredPC::LineConfig_type

Type for Node Card's configuration entry

Definition at line 96 of file NodeCardIoConfiguredPC.h.

Constructor & Destructor Documentation

◆ NodeCardIoConfiguredPC()

NodeCardIoConfiguredPC::NodeCardIoConfiguredPC	(	openlcb::Node *	pNode,
		const CardConfig_type &	configOffset,
		uint8_t	numDevicesPerCard,
		EventDeviceTypes	eventDeviceType
	)

inline

Parameters

pNode	is the OpenLCB node object from the stack.
configOffset	is the repeated group object from the configuration space that represents the locations of the events.
numDevicesPerCard	is the number of devices per card.
eventDeviceType	is the logical type of event device (used for logging, diagnostics, and naming).

Definition at line 113 of file NodeCardIoConfiguredPC.h.

Member Function Documentation

◆ _initI2cCards()

void I2cCardHelper::_initI2cCards ( bool isProducer )

inlineprivateinherited

Initializes the array of I2C card objects using the configured card type.

Allocates and initializes each I2C card in the array to the type specified by the cardType_ member. If isProducer is true, registers each card's polling callback.

Parameters

isProducer True if the card is used as a producer and requires polling.

Definition at line 460 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ apply_configuration()

UpdateAction NodeCardIoConfiguredPC::apply_configuration	(	int	fd,
		bool	initial_load,
		BarrierNotifiable *	done
	)

inline

Invoked on initial load of CDI and when CDI is udpated. Register configured events with OpenMRN.

Parameters

fd	file descriptor used to access CDI data
initial_load	is true when CDI is loaded after a reboot
done

Definition at line 234 of file NodeCardIoConfiguredPC.h.

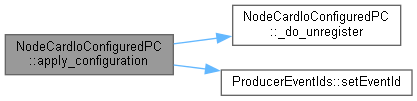

Here is the call graph for this function:

◆ applyI2cInfo()

void I2cCardHelper::applyI2cInfo	(	int	fd,
		uint8_t	cardIndex,
		i2cInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

sets up the MCP card's I2C connection using the user provided (CDI) configuration information (bus and address offset)

Note

producer/consumers apply_configuration() callback invoke this method to initialize the I2C / MCP connection information for the card

all I2C connected cards have CDI section for user provided bus and address information (which must match the settings of the I2C enabeled card)

HOOK: Typical call site is within your apply_configuration() loop:

read bus & offset from CDI
initialize the corresponding i2cCards[cardIndex]

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cardIndex	specifies which card the configuration is for. Used to update the i2cCards[] array and initialize the connection
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration for the MCP card

Definition at line 295 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ drive_pin()

virtual void I2cCardHelper::drive_pin	(	uint8_t	card,
		uint8_t	pin,
		bool	set
	)

inlineprotectedvirtualinherited

Hook for consumers: drive one output pin (simple case). Default does nothing; simple consumers override this.

Parameters

card	card index (as stored in user_arg)
pin	pin index (as stored in user_arg)
set	desired logical state from the event semantics (SET/ON = true, CLR/OFF = false)

Reimplemented in IoConfiguredPC, OutputConfiguredConsumer, ServoConfiguredConsumer, TurnoutConfiguredPC, and NeoPixelConfiguredConsumer.

Definition at line 392 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ drive_pin_ext()

virtual void I2cCardHelper::drive_pin_ext	(	uint8_t	card,
		uint8_t	pin,
		bool	set,
		uint8_t	intArg
	)

inlineprotectedvirtualinherited

Extended hook for consumers that also need the CDI intArg (e.g., audio message index). Default forwards to drive_pin(...) so existing consumers remain unchanged.

Reimplemented in AudioConfiguredConsumer.

Definition at line 402 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ensureUniqueI2cOffset()

bool I2cCardHelper::ensureUniqueI2cOffset	(	uint8_t	cardIndex,
		uint8_t	bus,
		uint8_t	offset
	)

inlineinherited

Check for duplicate offsets on the same I2C bus. Automatically resets the tracker on the first call per config pass.

Remarks: Call this once per card during your apply_configuration loop, with the CDI values.

Parameters

cardIndex	Index of the card in the config loop.
bus	I2C bus number (0 or 1).
offset	I2C offset (0–7).

Returns: true if this (bus, offset) was already claimed.

Definition at line 183 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ factory_reset()

void NodeCardIoConfiguredPC::factory_reset ( int fd )

inline

Reset CDI configuration entries to their initial (default) values.

Parameters

fd	used to access the CDI information in the file system

Definition at line 339 of file NodeCardIoConfiguredPC.h.

◆ handle_event_report()

void NodeCardIoConfiguredPC::handle_event_report	(	const openlcb::EventRegistryEntry &	registry_entry,
		openlcb::EventReport *	event,
		BarrierNotifiable *	done
	)

inline

Process consumed event for the a pin configured for output on the Node Card I/O line configured pins. Use args passed with the event to determine which pin to set on or off.

Parameters

registry_entry	contains information about the event, including the 'user' argument set during apply_configuration()
event	object handle for the event
done

Definition at line 367 of file NodeCardIoConfiguredPC.h.

◆ notify()

void NodeCardIoConfiguredPC::notify ( )

inlineoverride

Polls the state of input pins on Input/Output Cards and triggers events on state changes.

Asynchronous callback when the previous polling message has left via the bus. Used as a poor man's iterative state machine.

Iteratively checks each pin of every connected to the input point set of all Input/Output Cards for state changes. When a change in state is detected, it triggers a corresponding event. This function maintains state across calls, allowing it to resume polling where it left off in the previous call. Only one state change is handled per call to ensure load distribution over time.

Note: This function is repeatedly invoked by openMRN stack (registered via poll_33hz); After processing all cards, the function resets to start from the first card in the next call.

Definition at line 169 of file NodeCardIoConfiguredPC.h.

Here is the caller graph for this function:

◆ polling()

openlcb::Polling * NodeCardIoConfiguredPC::polling ( )

inline

Returns: the instance to give to the RefreshLoop object.

Definition at line 133 of file NodeCardIoConfiguredPC.h.

◆ resetCardInfo()

void I2cCardHelper::resetCardInfo	(	int	fd,
		cardInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

resets the card configuration information (description field).

Note: invoke from the consumer/producer factory_reset() to reset the card configuration

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration block for the card's info (description, etc)

Definition at line 309 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ resetI2cInfo()

void I2cCardHelper::resetI2cInfo	(	int	fd,
		i2cInfoConfig_type	cfgI2cInfoRef
	)

inlineprotectedinherited

resets the card's I2C configuration information (bus and address fields).

Note: invoke from the consumer/producer factory_reset() to reset the card configuration

Parameters

fd	file handle to access the CDI configuration information (provided by openmrn)
cfgI2cInfoRef	offset into the intenal configuration space for the CDI configuration for card's I2C info (bus/offset)

Definition at line 321 of file I2cCardHelper.h.

Here is the caller graph for this function:

◆ SendEventIdentified()

virtual void I2cCardHelper::SendEventIdentified	(	const openlcb::EventRegistryEntry &	registry_entry,
		openlcb::EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprotectedvirtualinherited

Sends Producer- or Consumer-Identified for registry_entry.

Identification type is inferred from the registry entry’s packed user args (see

See also: isProducer). Override to customize the MTI or payload.

Reimplemented in TurnoutConfiguredPC.

Definition at line 273 of file I2cCardHelper.h.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ userArgs

union I2cCardHelper::EventUserArgsUnion I2cCardHelper::userArgs

inherited

event arguments

The documentation for this class was generated from the following file:

Node_Card/NodeCardIoConfiguredPC.h
