SoundRemoteConfiguredConsumer Class Reference

Consumer class for receiving sound player related events and sending them to MP3 players (DFPlayer) More...

#include <SoundConfiguredConsumer.h>

Inheritance diagram for SoundRemoteConfiguredConsumer:

Collaboration diagram for SoundRemoteConfiguredConsumer:

Public Member Functions
UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done) OVERRIDE
	Invoked on initial load of CDI and when CDI is udpated. Register configured events with OpenMRN. More...
void	factory_reset (int fd) OVERRIDE
void	handle_event_report (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport *event, BarrierNotifiable *done) OVERRIDE
	Process consumed event. Use args passed with the event to determine which event occurred and the player information.
void	handle_identify_global (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport *event, BarrierNotifiable *done) OVERRIDE
	Process global request to identify events.
void	handle_identify_consumer (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport *event, BarrierNotifiable *done) OVERRIDE
	Process request to identify produced events.
void	applyPlayerConfiguration (int fd, uint8_t cardNum, uint8_t numPlayers, size_t playersCdiOffset, const std::vector< std::vector< SoundPlayerDevice * > > &pPlayers)
	applyPlayerConfiguration invoke to apply (register events) for the group of players using the user specified CDI More...

Private Member Functions
void	_do_unregister ()
	Removed registration of this event handler from the global event registry.
void	_sendConsumerIdentified (const openlcb::EventRegistryEntry &registry_entry, openlcb::EventReport *event, BarrierNotifiable *done)
	Sends out a ConsumerIdentified message for the given registration entry.

Detailed Description

Consumer class for receiving sound player related events and sending them to MP3 players (DFPlayer)

Parameters

node	is the OpenLCB node object from the stack.
config	is the repeated group of objects in the configuration space that represents a group of sound cards

Usage:

SoundRemoteConfiguredConsumer soundCardsConfigObject( lccNode.node(), cfg.soundCardsSeg().soundCards() );

Definition at line 376 of file SoundConfiguredConsumer.h.

Member Function Documentation

apply_configuration()

UpdateAction SoundRemoteConfiguredConsumer::apply_configuration ( int  fd, bool  initial_load, BarrierNotifiable *  done  )

inline

Invoked on initial load of CDI and when CDI is udpated.
Register configured events with OpenMRN.

---

Parameters

fd	file descriptor used to access CDI data
initial_load	is true when CDI is loaded after a reboot
done

Definition at line 426 of file SoundConfiguredConsumer.h.

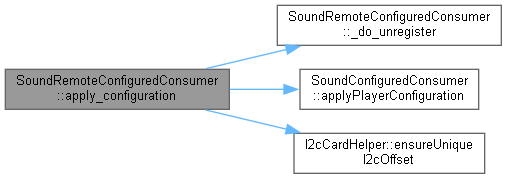

Here is the call graph for this function:

applyPlayerConfiguration()

void SoundConfiguredConsumer::applyPlayerConfiguration ( int  fd, uint8_t  cardNum, uint8_t  numPlayers, size_t  playersCdiOffset, const std::vector< std::vector< SoundPlayerDevice * > > &  pPlayers  )

inlineinherited

applyPlayerConfiguration invoke to apply (register events) for the group of players using the user specified CDI

---

Parameters

fd	is the file descriptor provided by openMRN
cardNum	is the current card number the player(s) is associated with. Used to qualifying the default event ID to a specific card.
numPlayers	is the number of players in the group of players (1 or more)
playersCdiOffset	is the offset in memory for the CDI configuration for this group of players
pPlayers	is a vector of pointers to the SoundPlayerDevice objects created for each player

Note

player specific information is stored in the event's 4-byte user argument. Later when the event is received an being processed, these 4-bytes are used to identify the specific player information (player request type, card number, player number, file number and volume %)

Definition at line 128 of file SoundConfiguredConsumer.h.

Here is the caller graph for this function:

factory_reset()

void SoundRemoteConfiguredConsumer::factory_reset ( int  fd )

inline

Reset CDI configuration entries to their initial (default) values

Parameters

fd	used to access the CDI information in the file system

Definition at line 459 of file SoundConfiguredConsumer.h.

---

The documentation for this class was generated from the following file:

• Node_Card/SoundConfiguredConsumer.h
